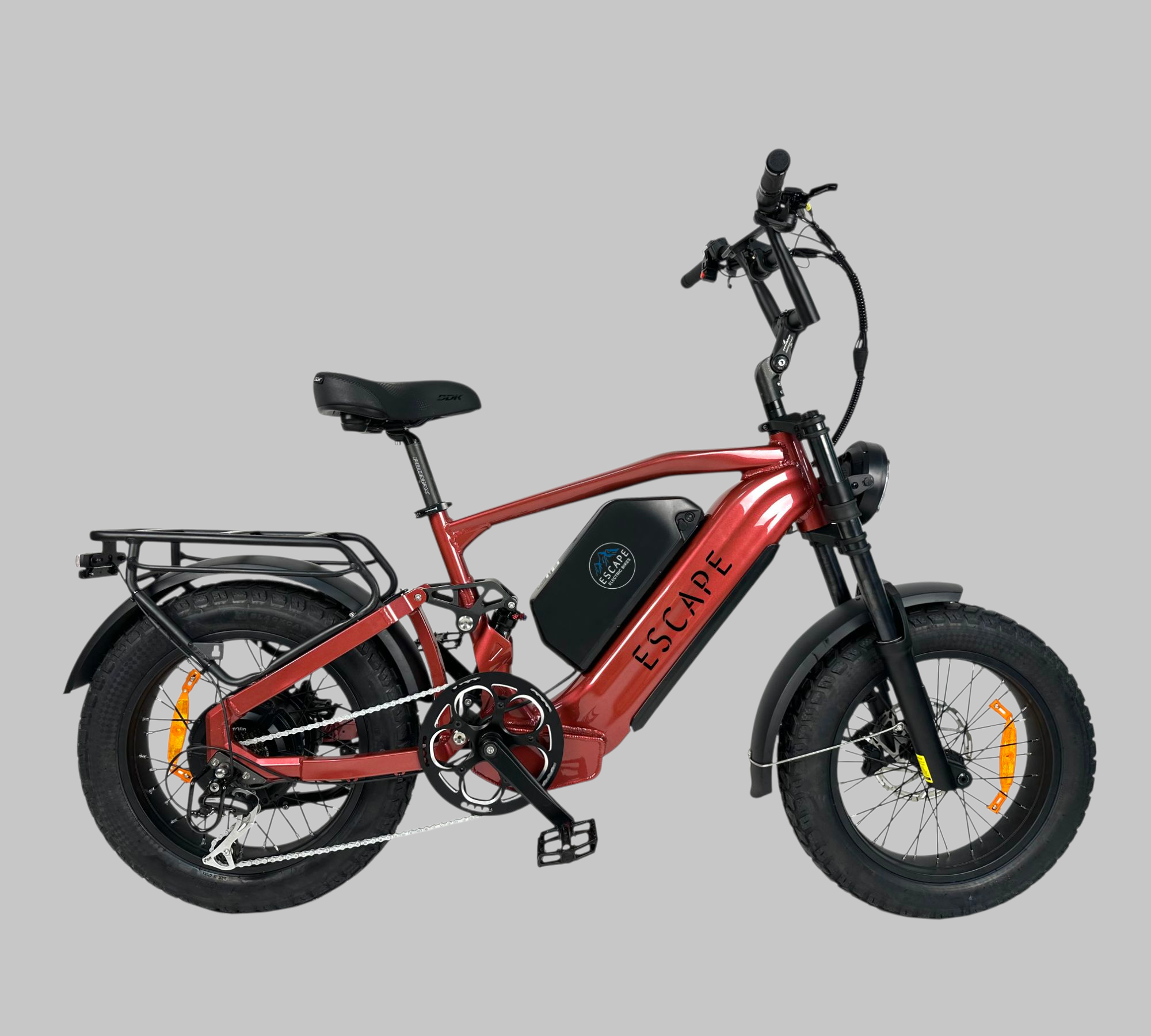

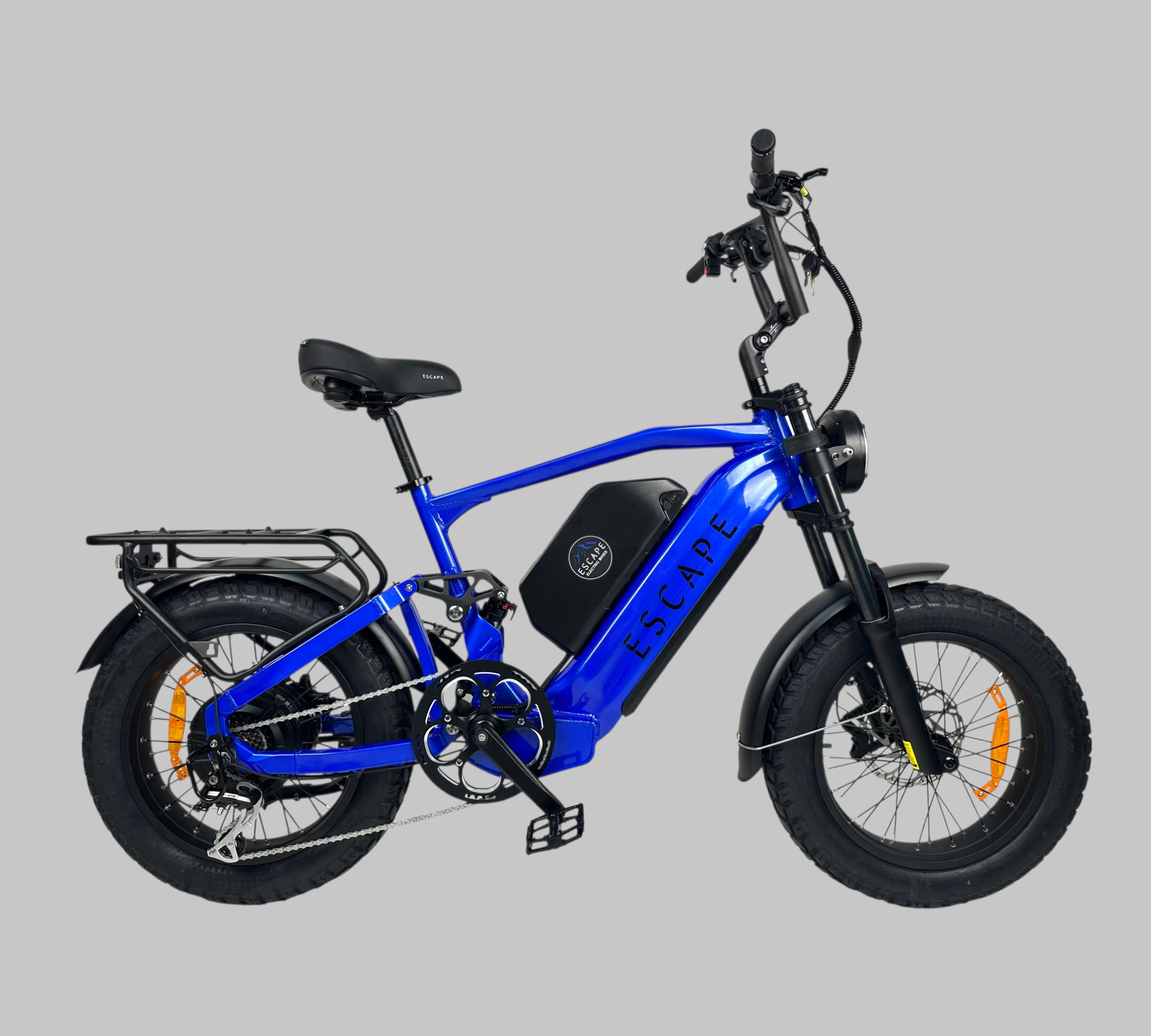

Ranger

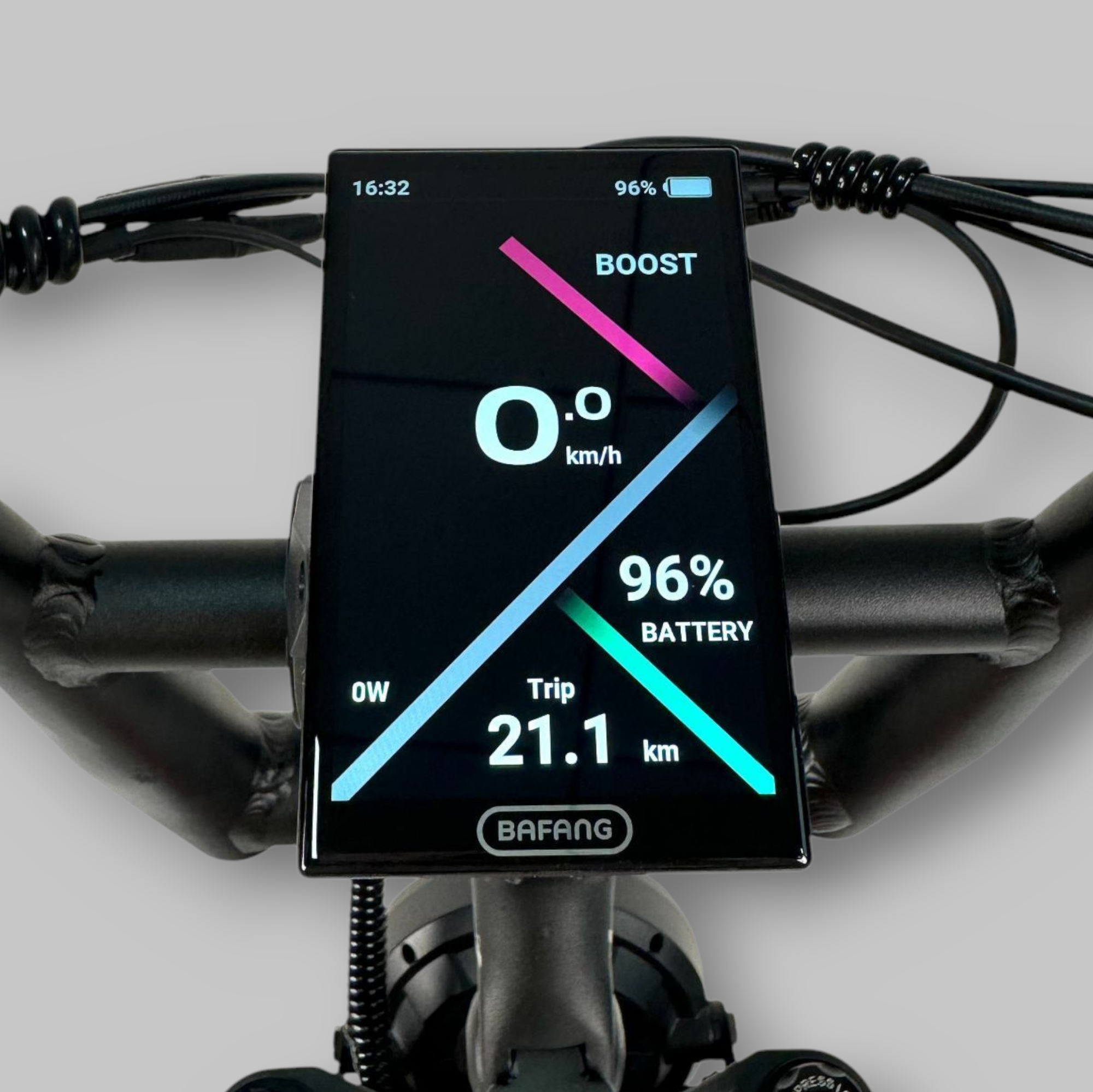

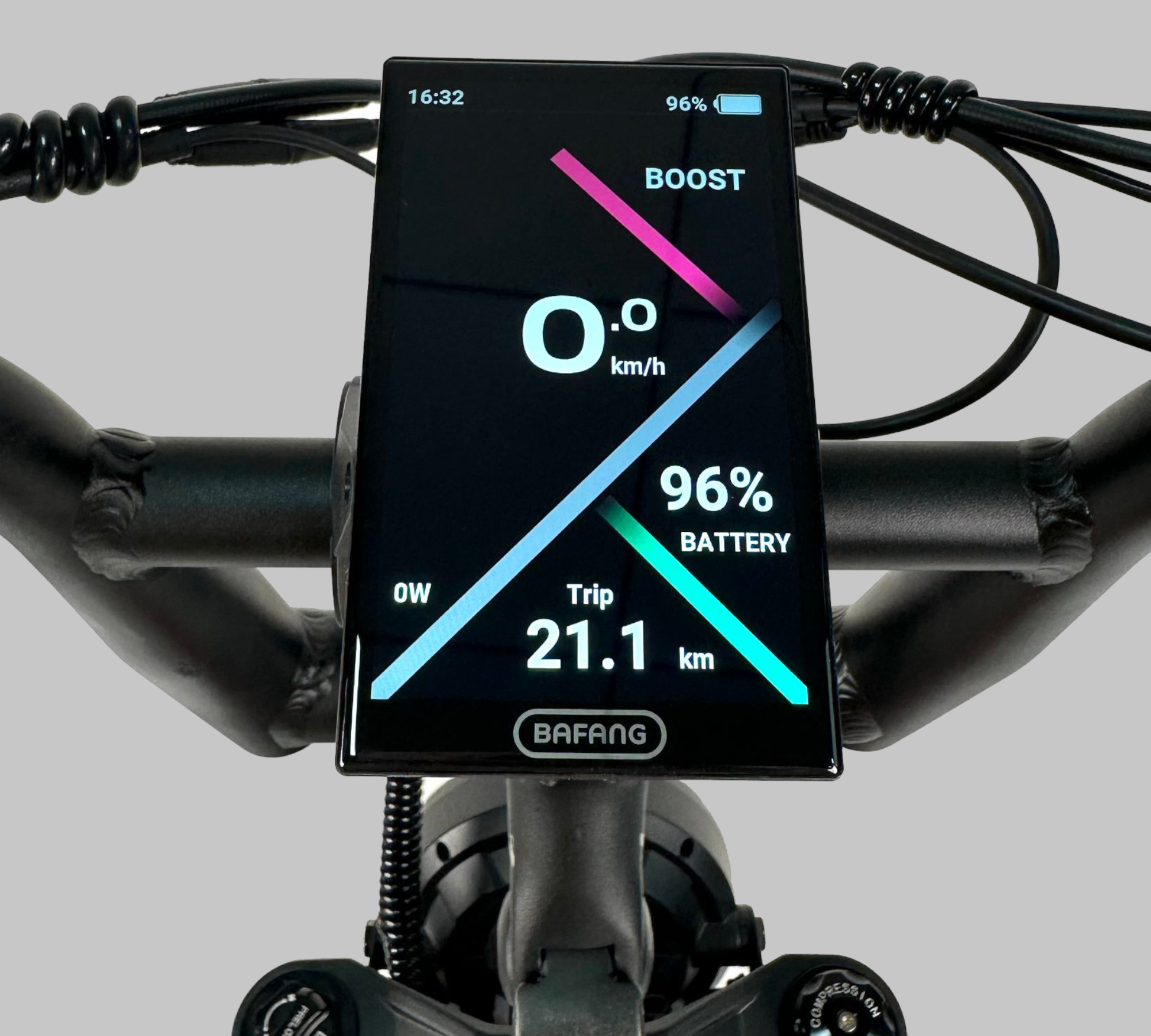

PROGRAMMABLE DISPLAY

The Bafang C010 TFT programmable display boasts 9 levels of pedal assist and integrated USB charging ports, enabling riders to customize their bike settings to suit their individual preferences and optimize their riding experience.

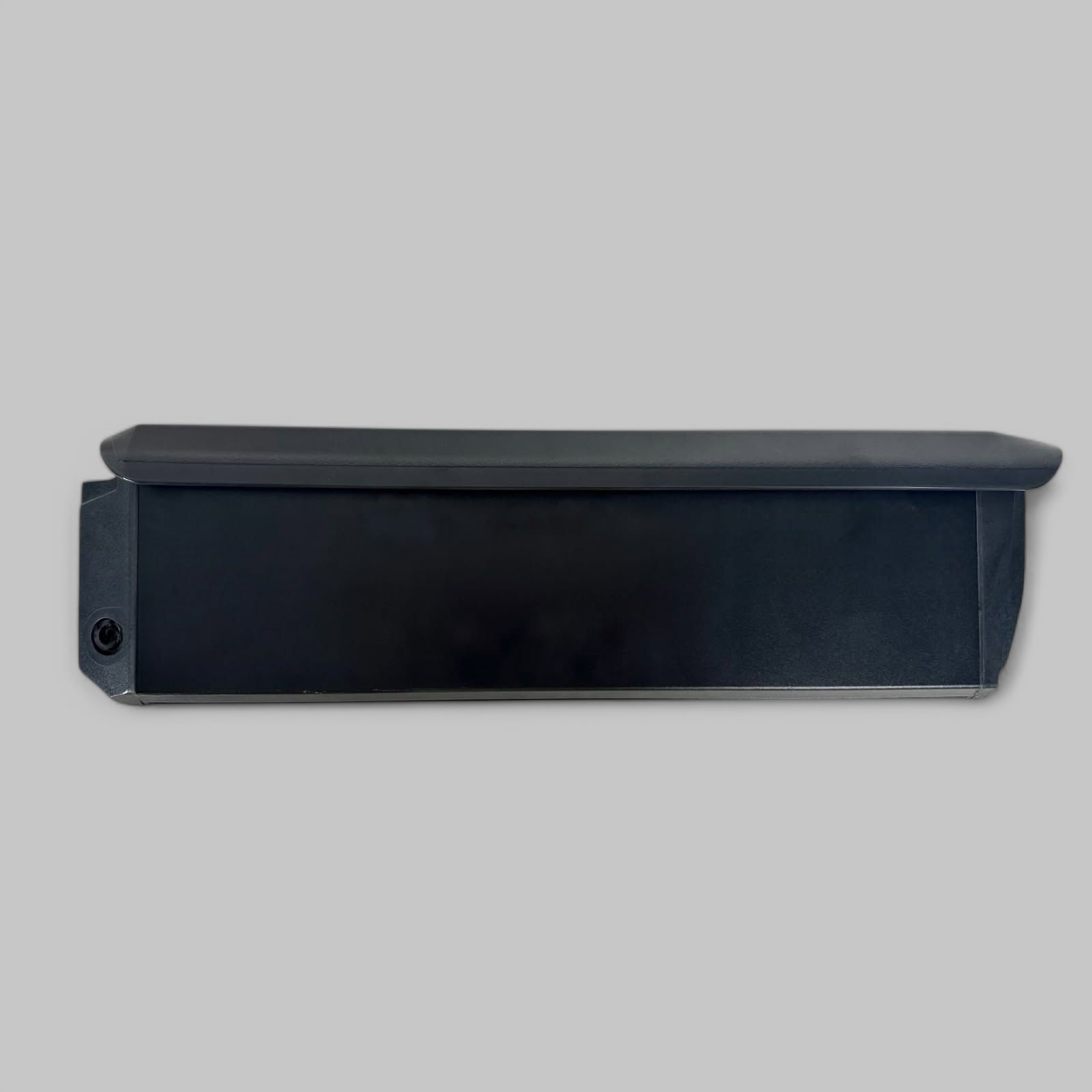

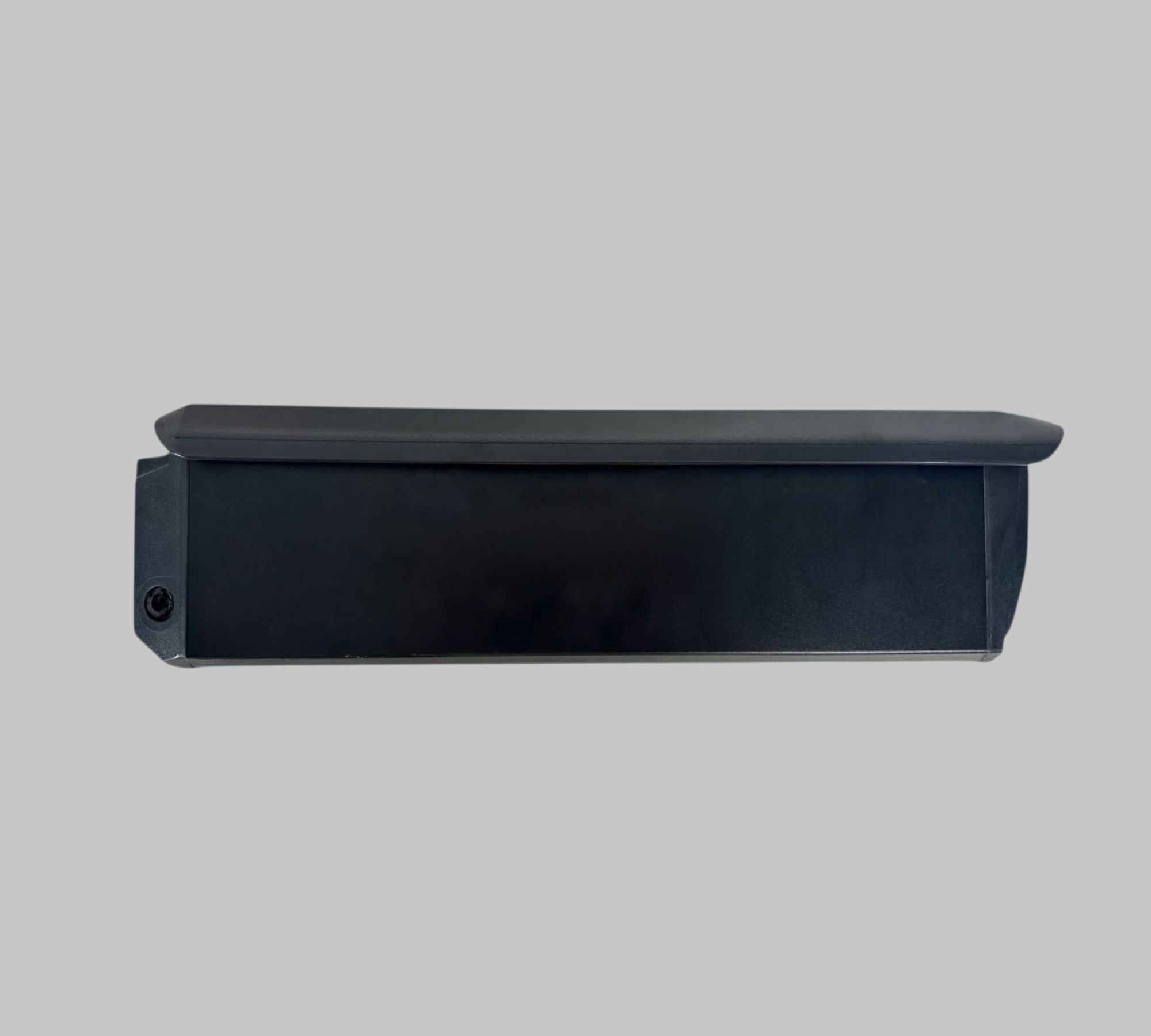

DUAL SAMSUNG LITHIUM-ION BATTERIES

1-72 VOLT 20ah Samsung 21700 Lithium-ion cells and 1-72-Volt 15ah Samsung 21700 cells (battery pictured in product gallery) provide a combined range of 85 miles on a full charge.

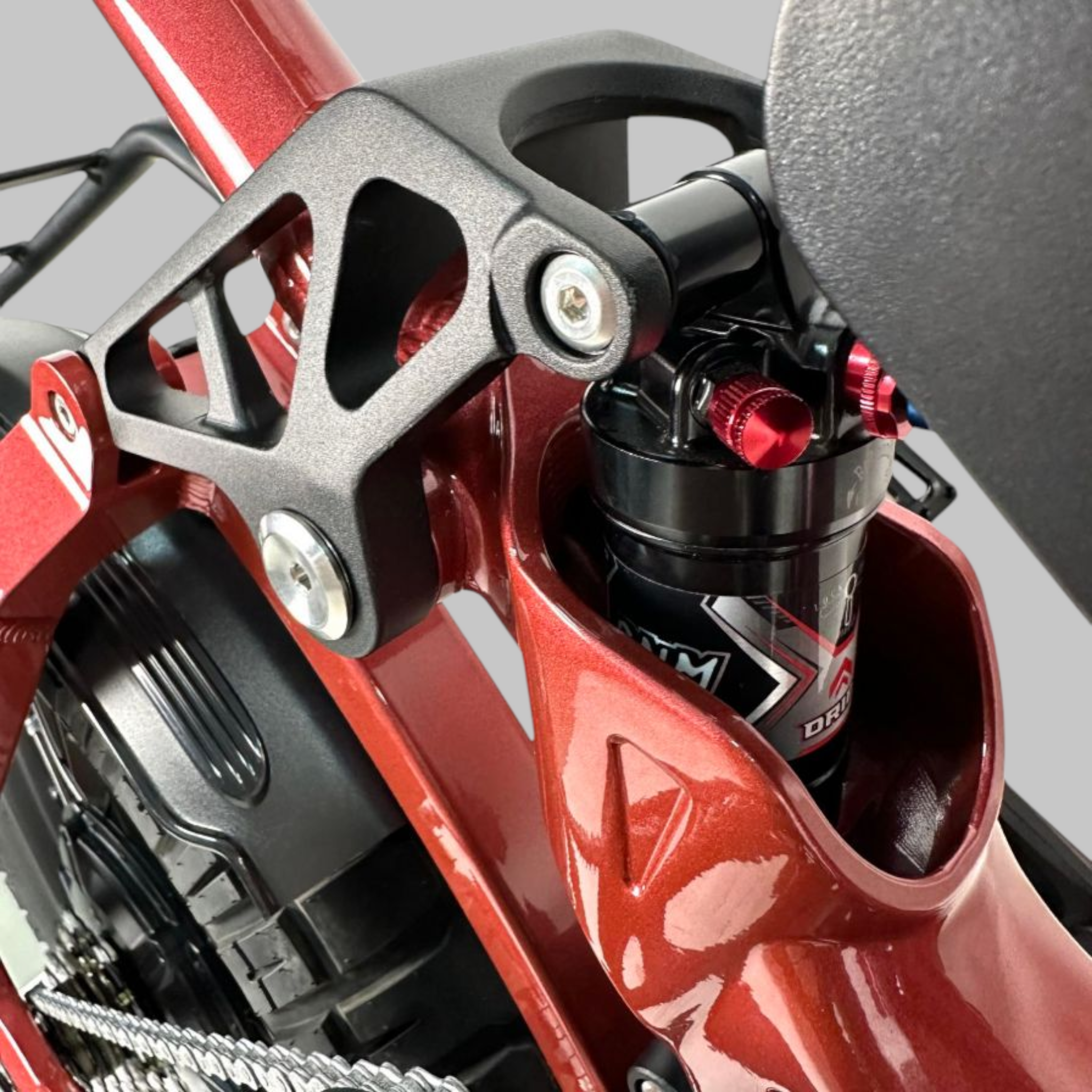

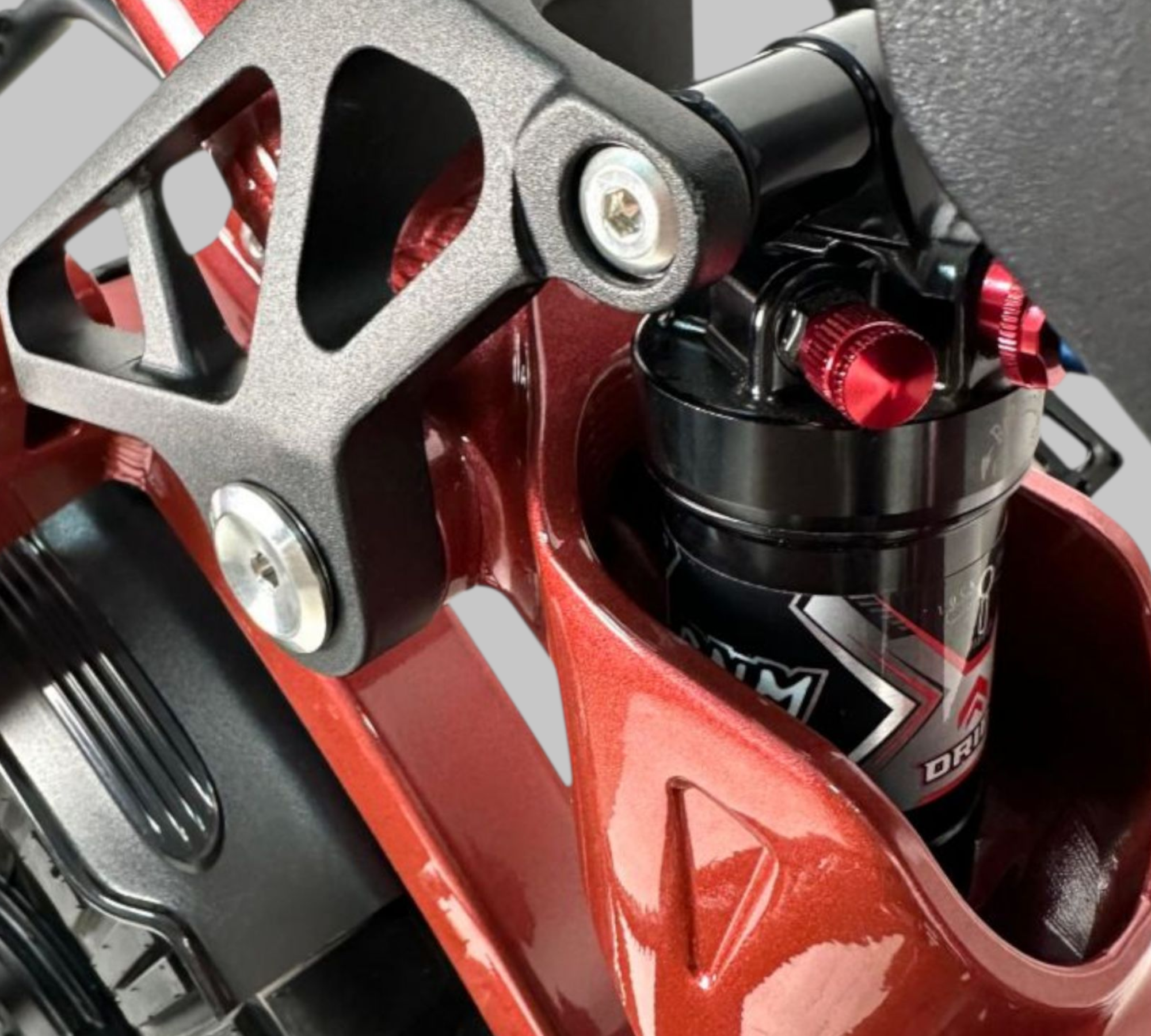

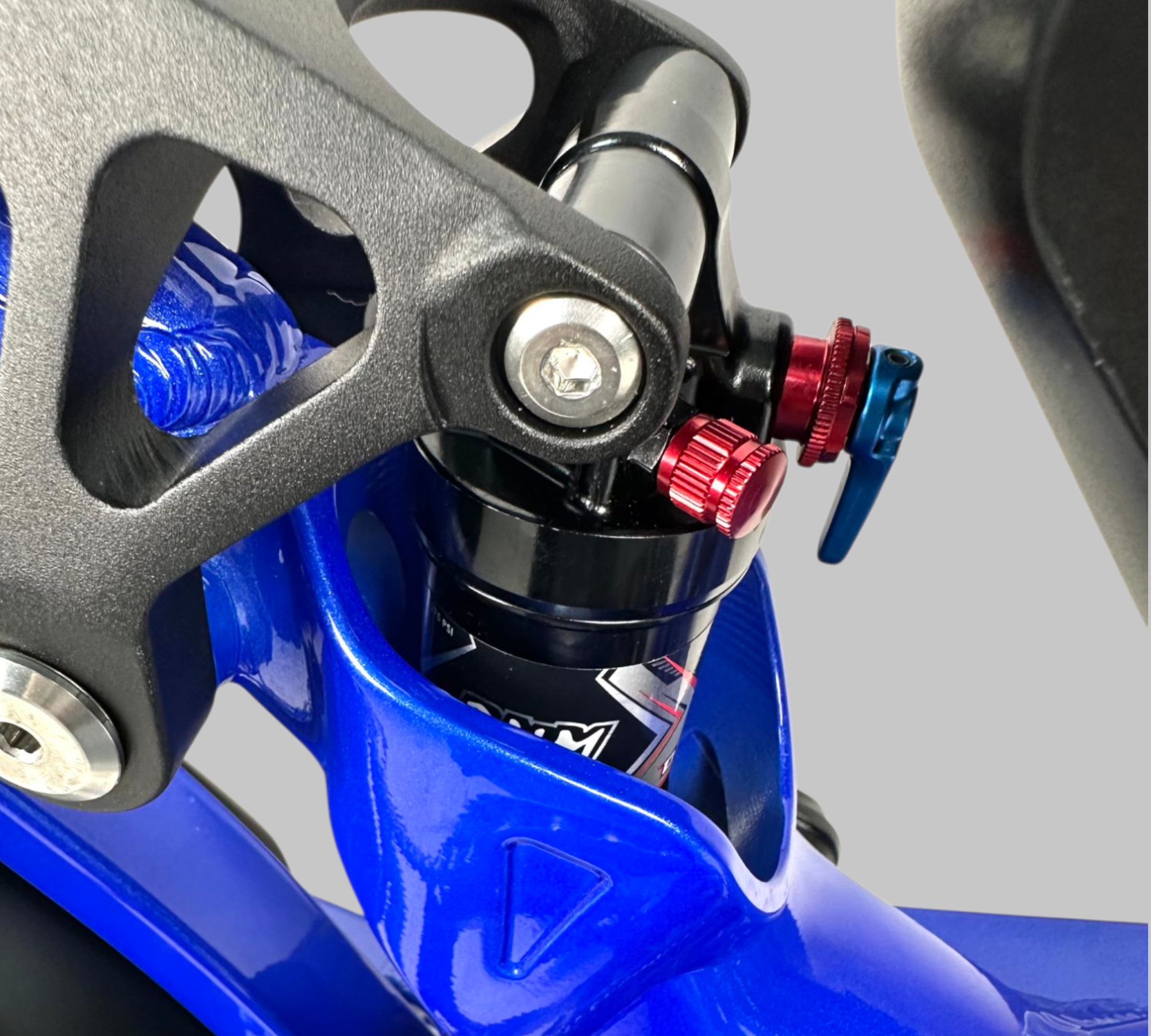

REAR AIR SUSPENSION

Rear frame air shock suspension incorporates air pressure adjustment for improved ride quality.

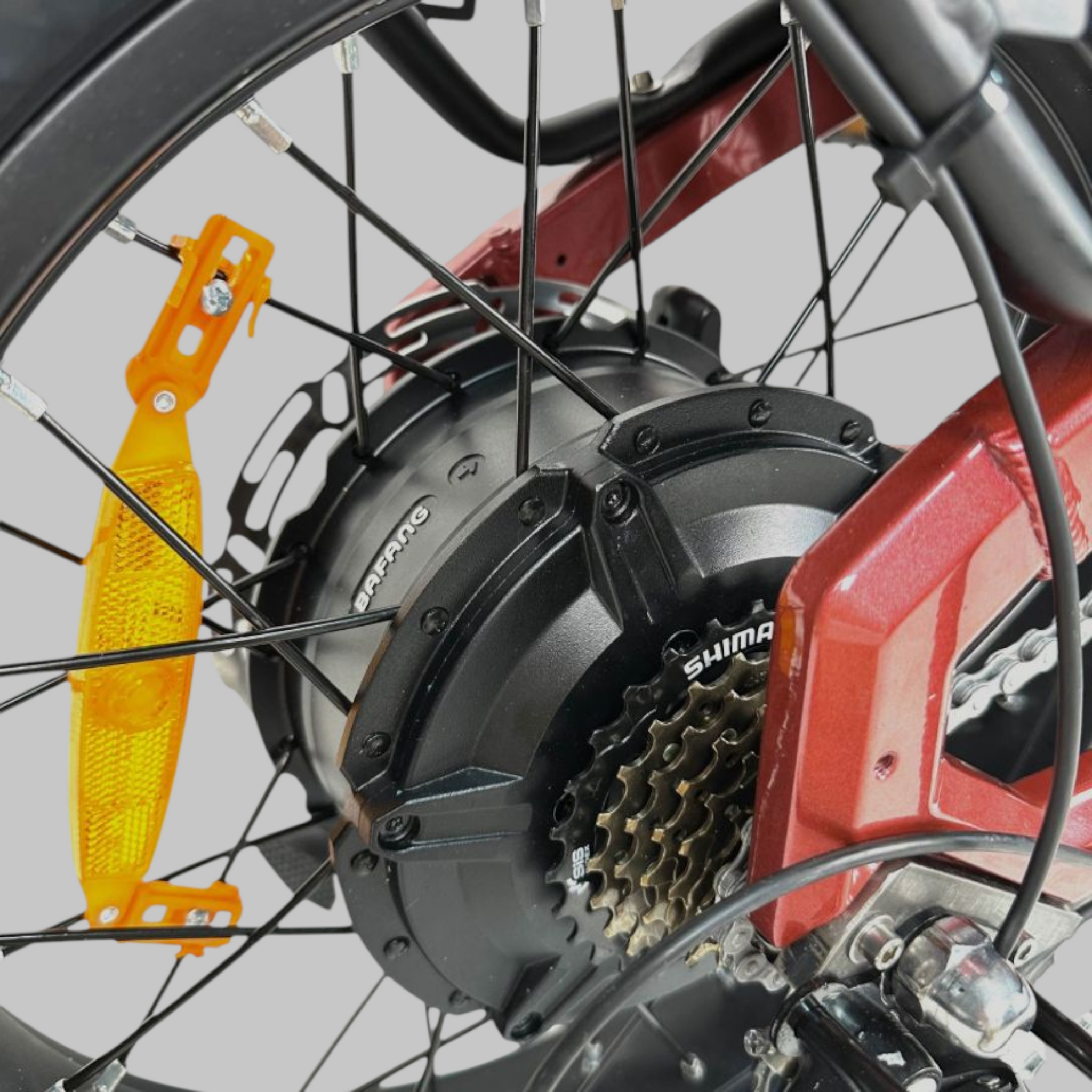

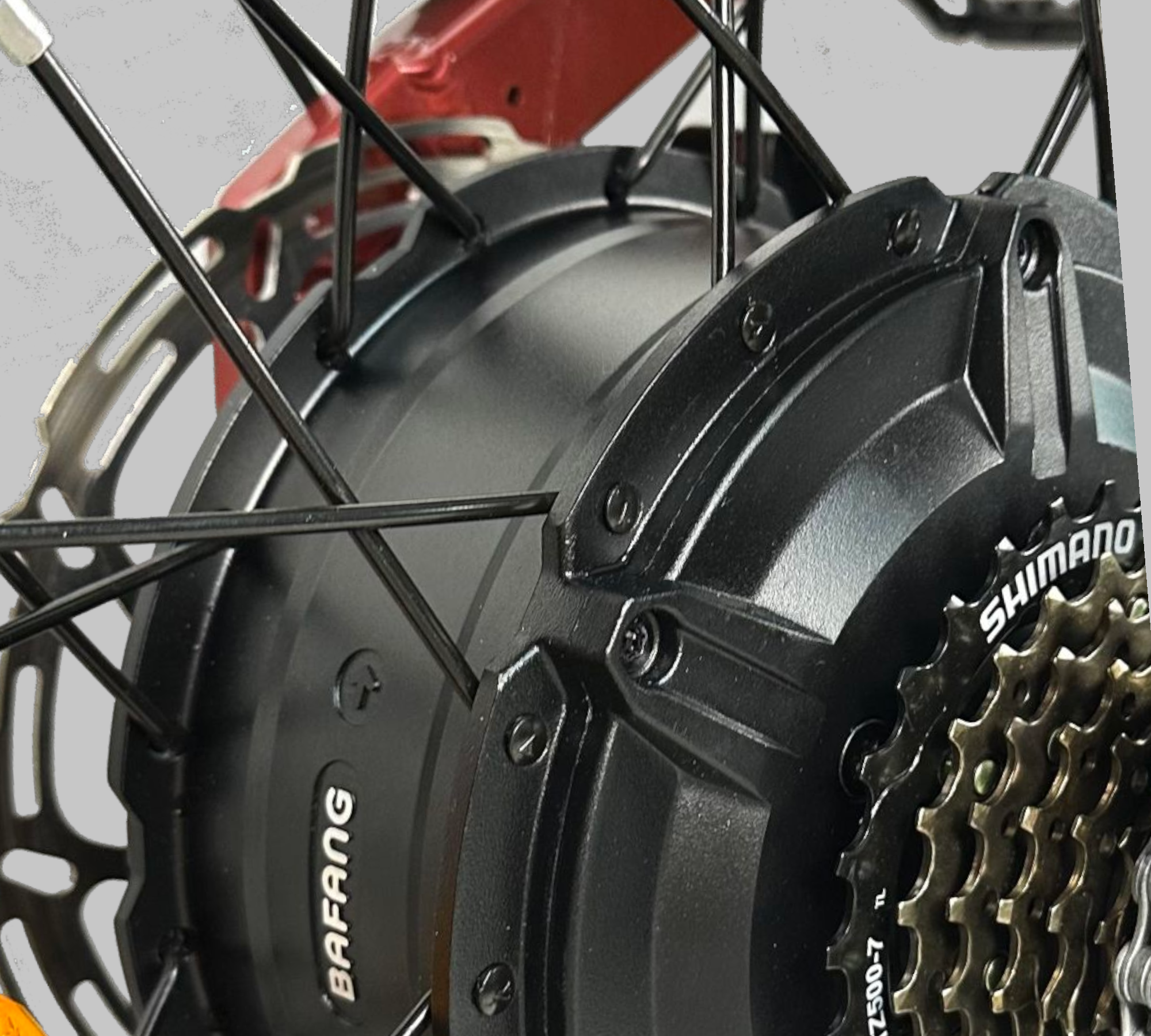

Genuine Bafang 2000-watt Motor

72-Volt 2000-watt Bafang hub motor incorporating advanced engineered nylon gears for increased strength and quietness with a new internal rotor system design capable of delivering a peak power of 5000-watts and a remarkable 190Nm of torque to maintain a competitive advantage. Side Note: Some of our competitors use non-genuine motors.

72 VOLT 60-AMP CONTROLLER

72-Volt 60-amp controller, featuring thermal conductive gel for enhanced heat dissipation and reliable ride performance.

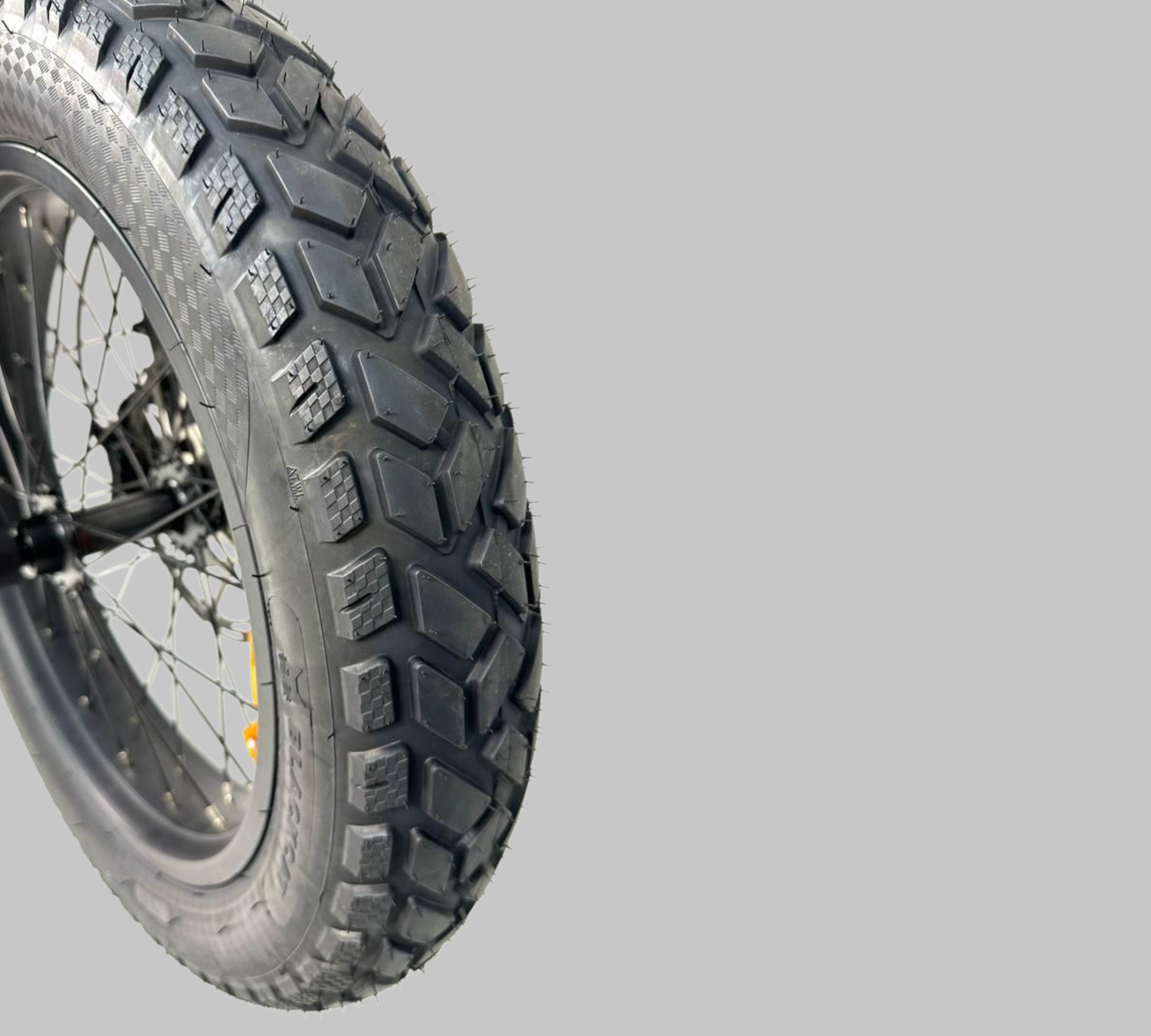

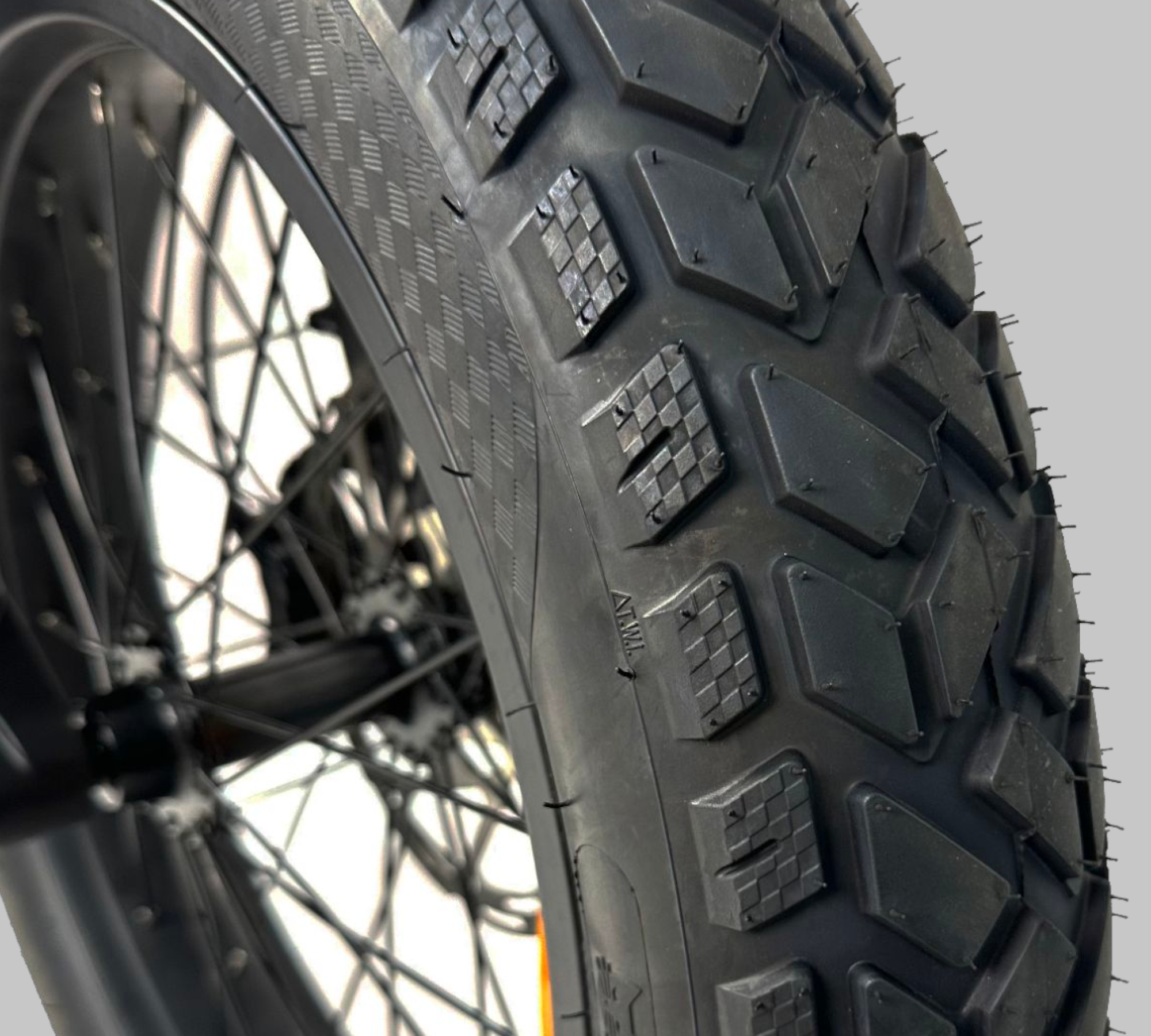

HYBRID BLACKCAT TIRES

Discover superior performance and reliability with advanced hybrid Blackcat tires, built to handle challenging terrain with a robust puncture-resistant structure and high-speed rated design. These high-quality tires are wrapped around our extra strength double-wall aluminum alloy wheel and integrated 12-gauge spokes in the front and 10-gauge spokes in the rear for added strength to enable confident riding.

WARRANTY

3-year on Frame, 2 years for Batteries, all Bafang parts are 30 months which includes Motor, Display, Controller and Torque Sensor. Warranty period starts from date of delivery.

Key Specifications

6061 Aluminum Alloy Frame with DNM air shock suspension with 160mm of travel

72 Volt System

72 Volt 2000-watt Bafang rear hub motor- peak power of 5000-watts max output

190Nm of Torque

60-amp waterproof controller with thermal gel

Dual 3.5 AMP Chargers

20-ah & 15-ah Samsung 21700 Lithium-ion battery/ 1440-WH and 1080-WH for a combine of 2520-WH

20" x 4" Blackcat Puncture-Resistant Tires

Heavy Duty Double Wall Aluminum Alloy Rims

10 Gauge Spokes (Front) and 12 Gauge Spoke (Rear)

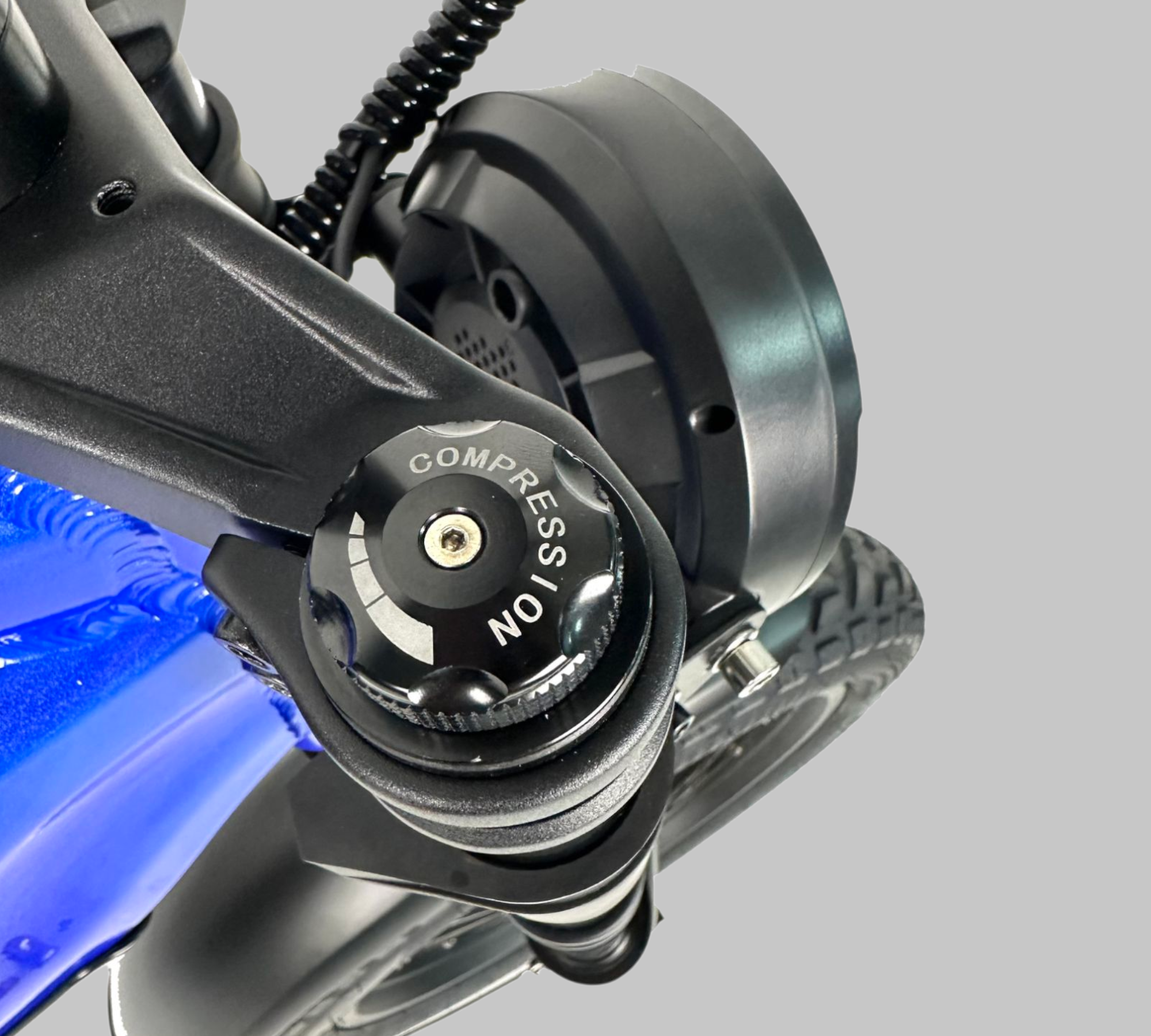

Durable Dual Crown Forks with lock out and rebound adjustment with 160mm of Travel

BMX Aluminum Alloy Handlebars

Promax Seat Post

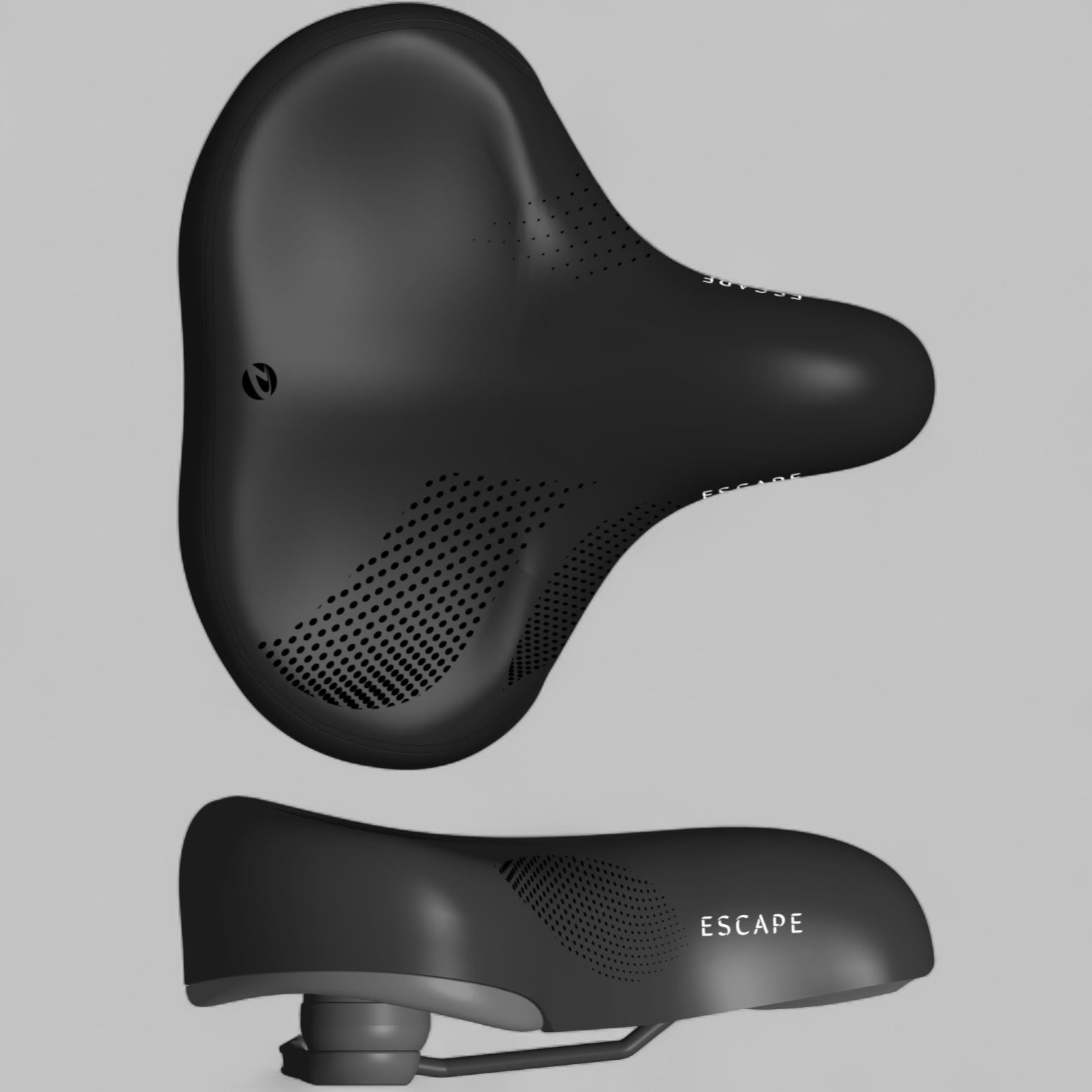

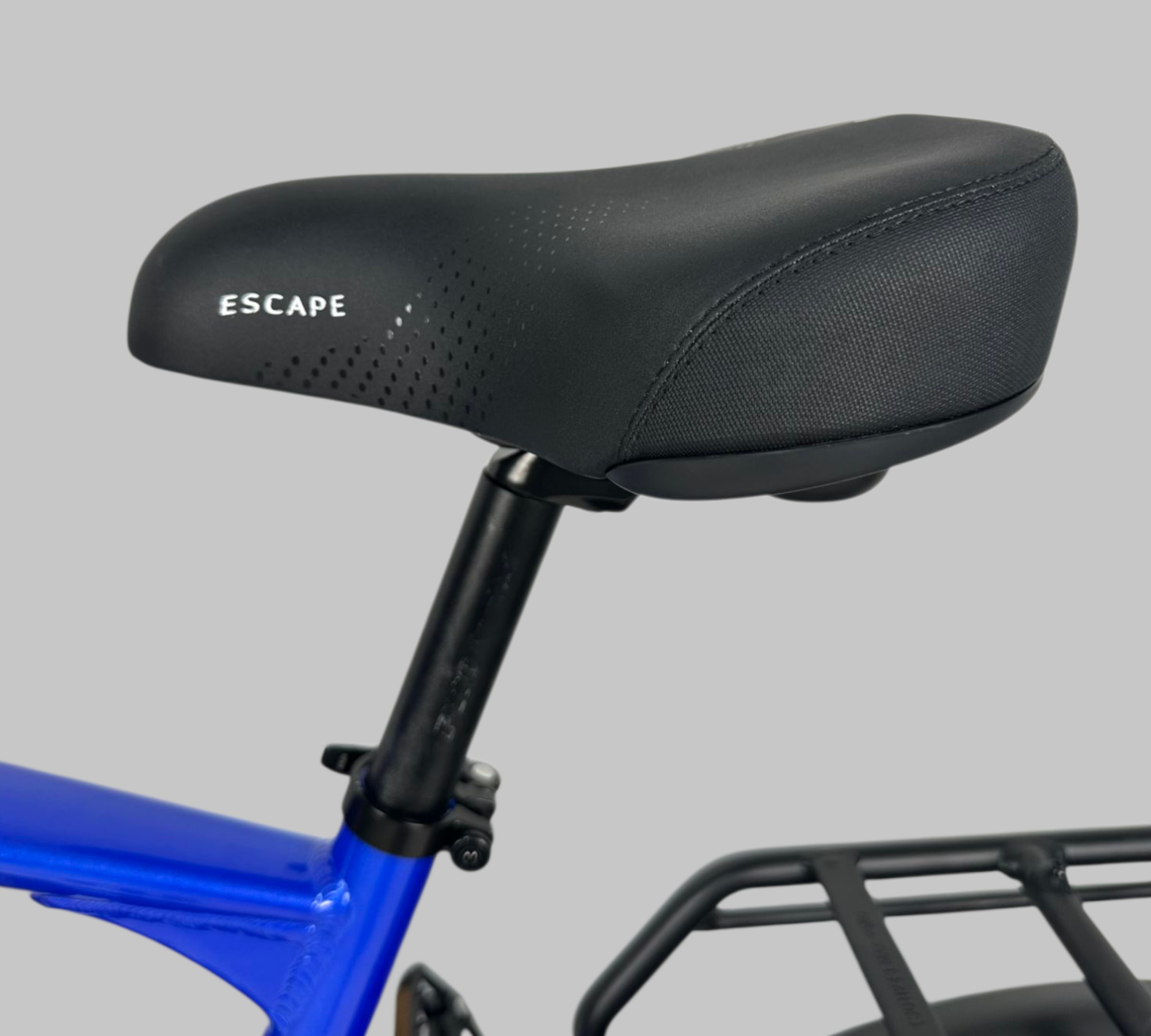

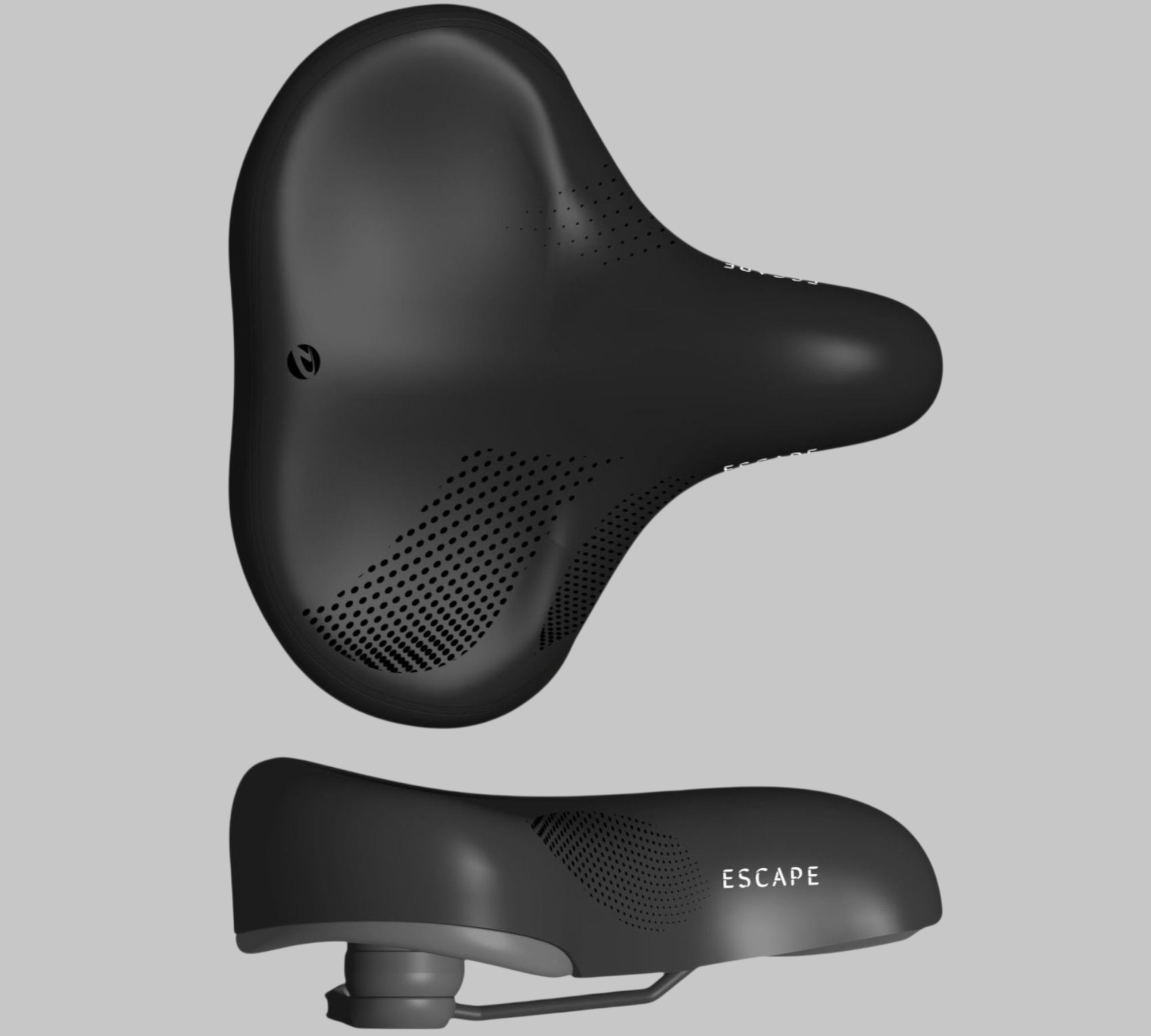

Escape Brand Comfy Saddle

Bafang C010 TFT Programmable Display

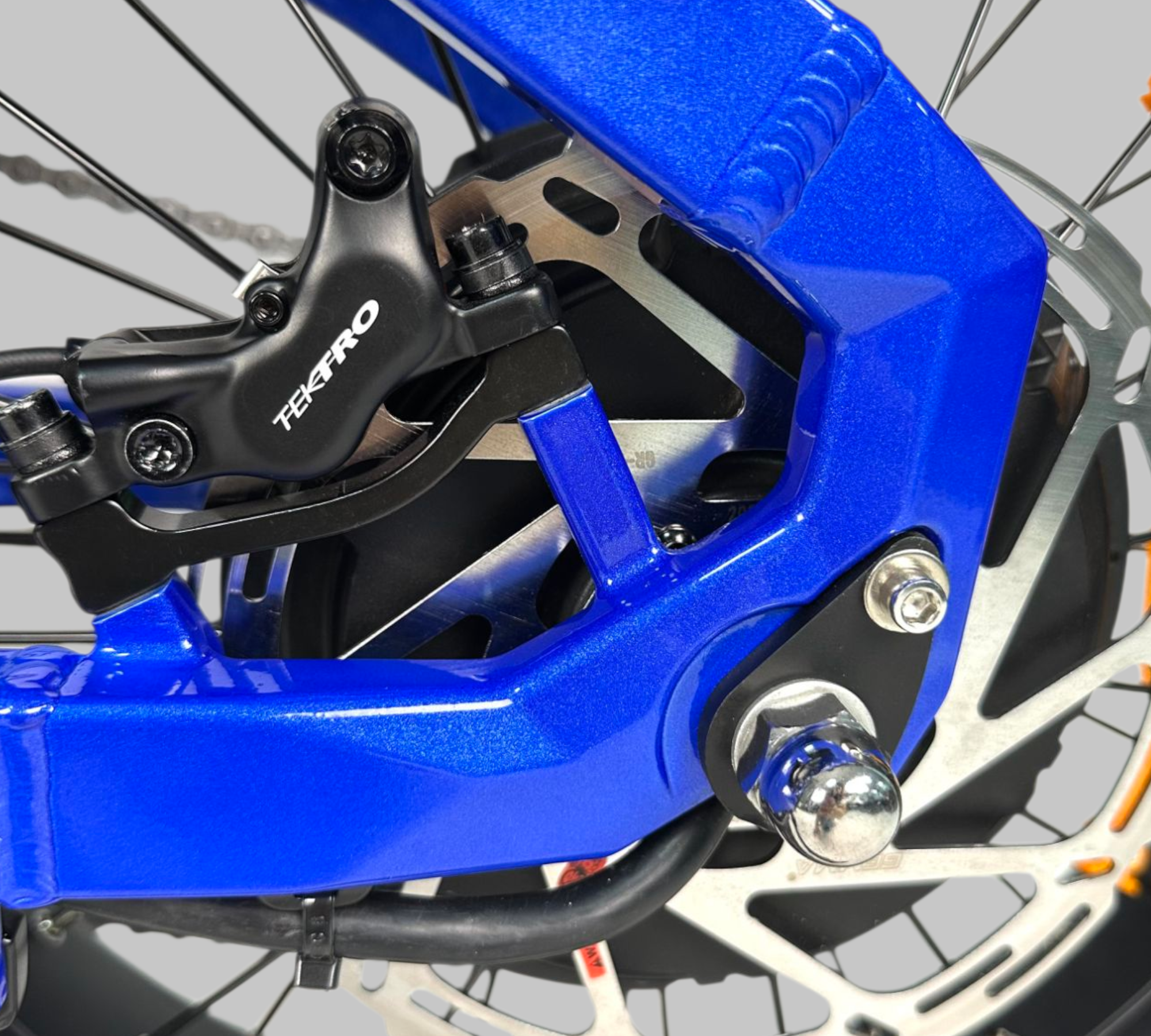

Tektro E3940 Quad Piston Hydraulic Disc Brakes

Front and Rear 203mm Rotors

Torque/Cadence Combo

58T Aluminum Alloy Crank

Rear 11-34T Free Wheel

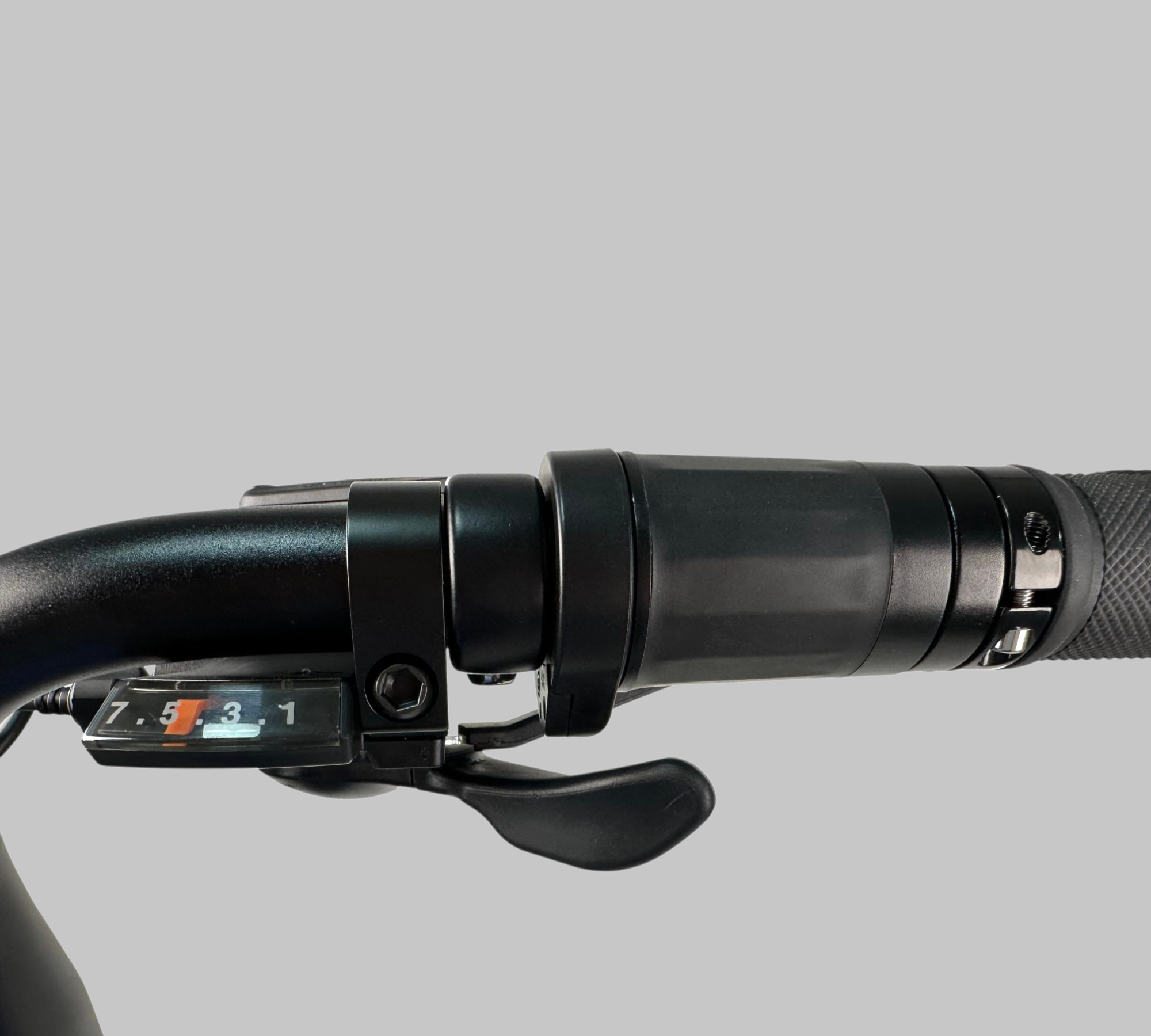

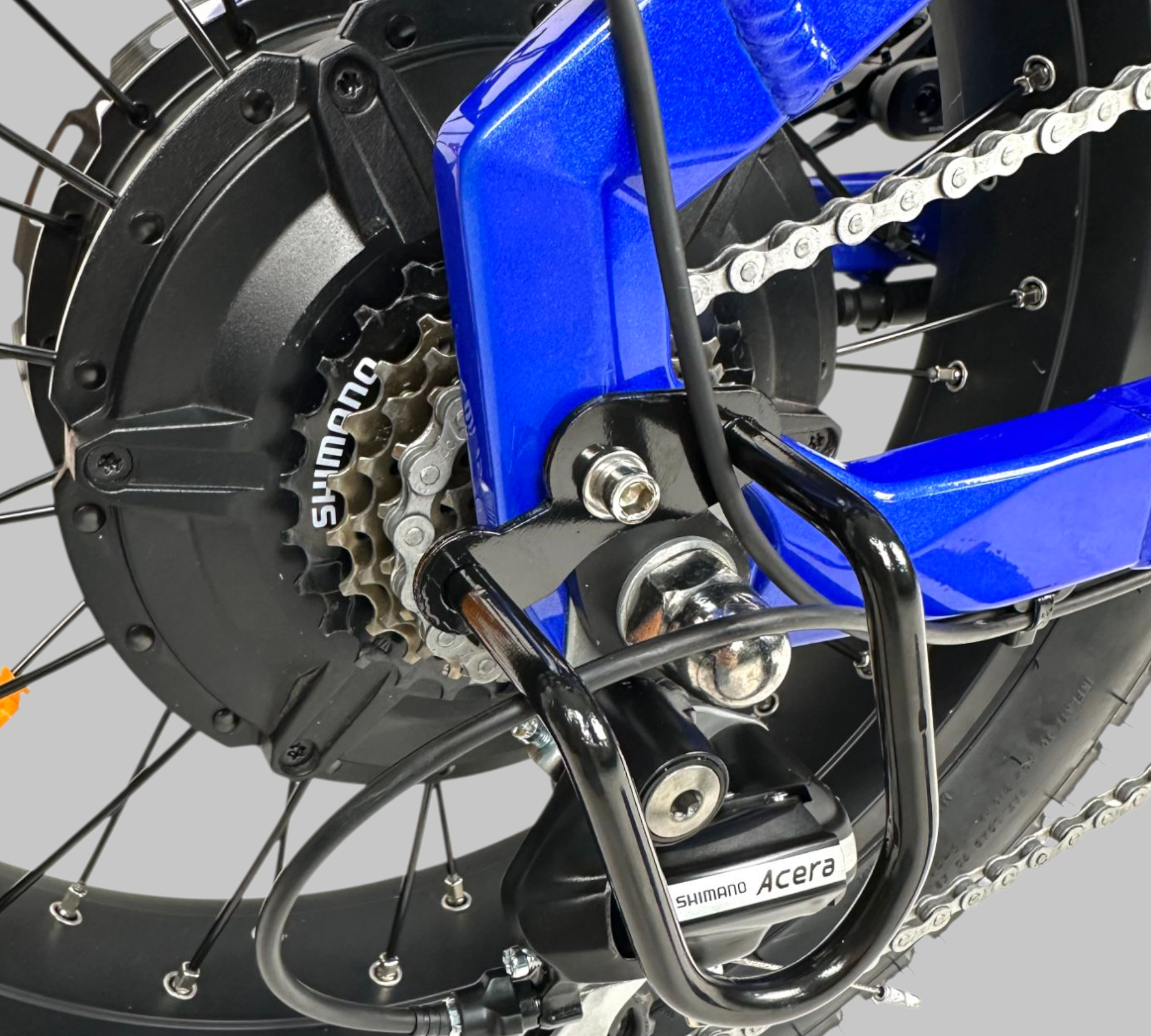

Shimano Acera 7 Speed

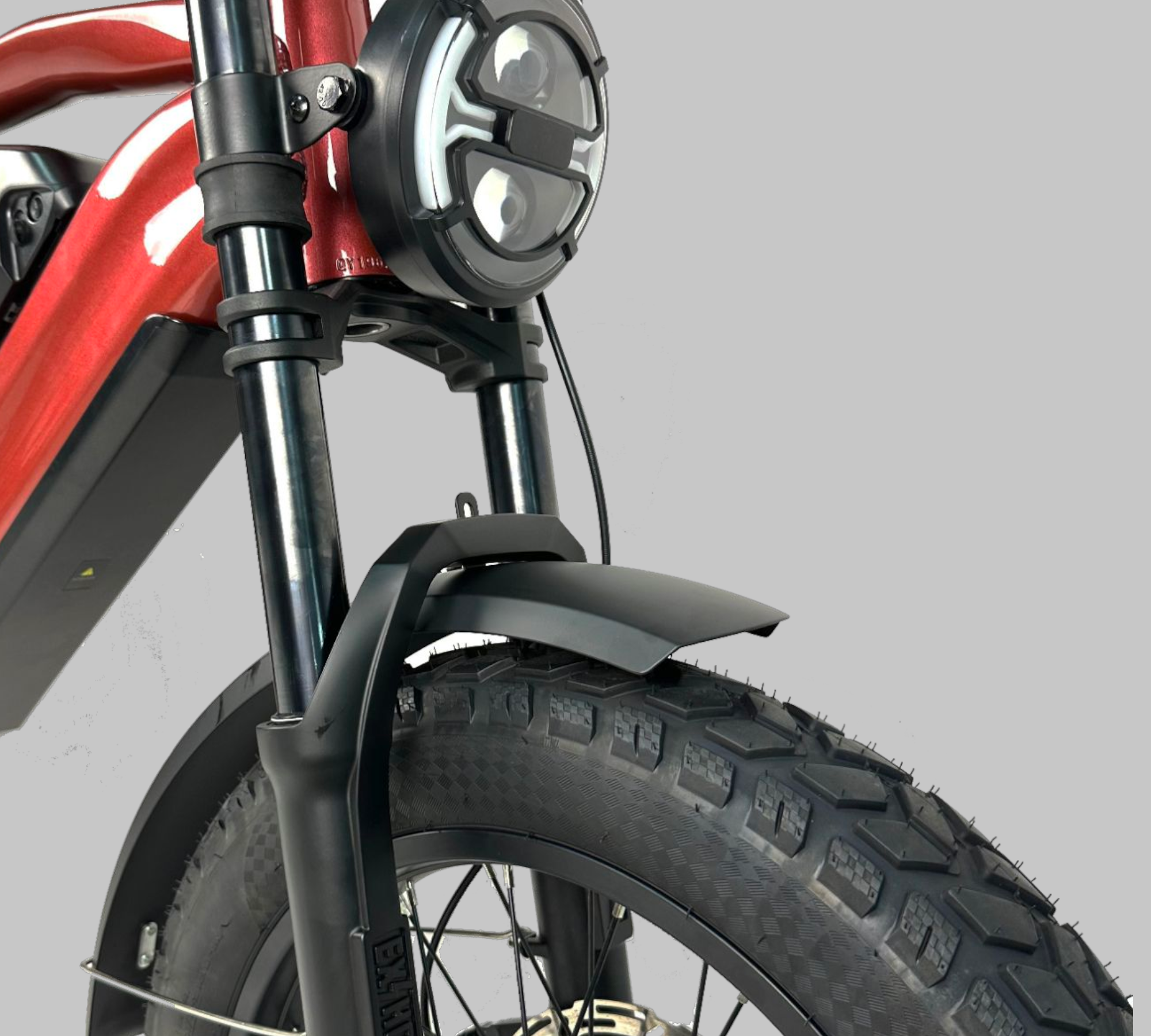

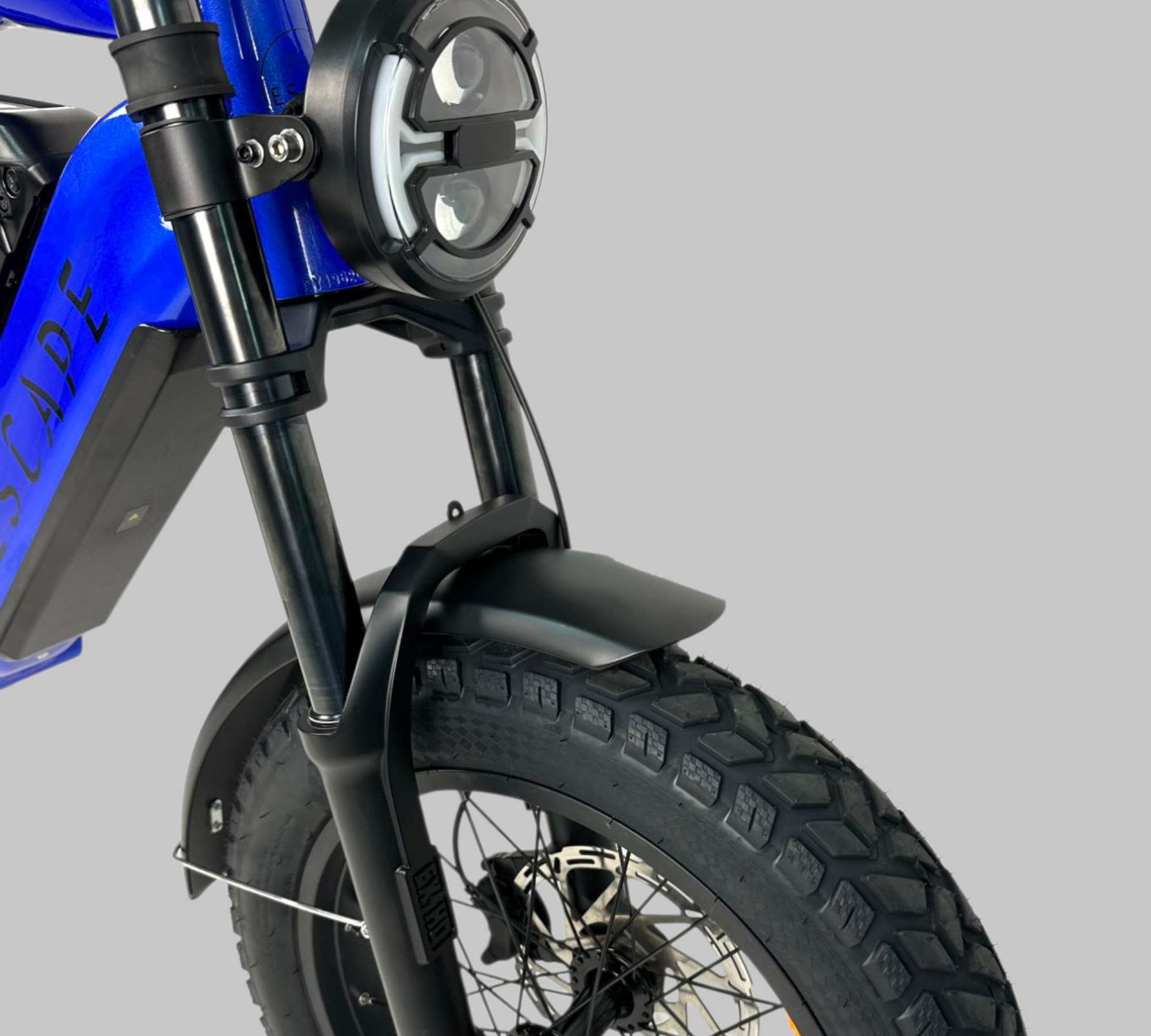

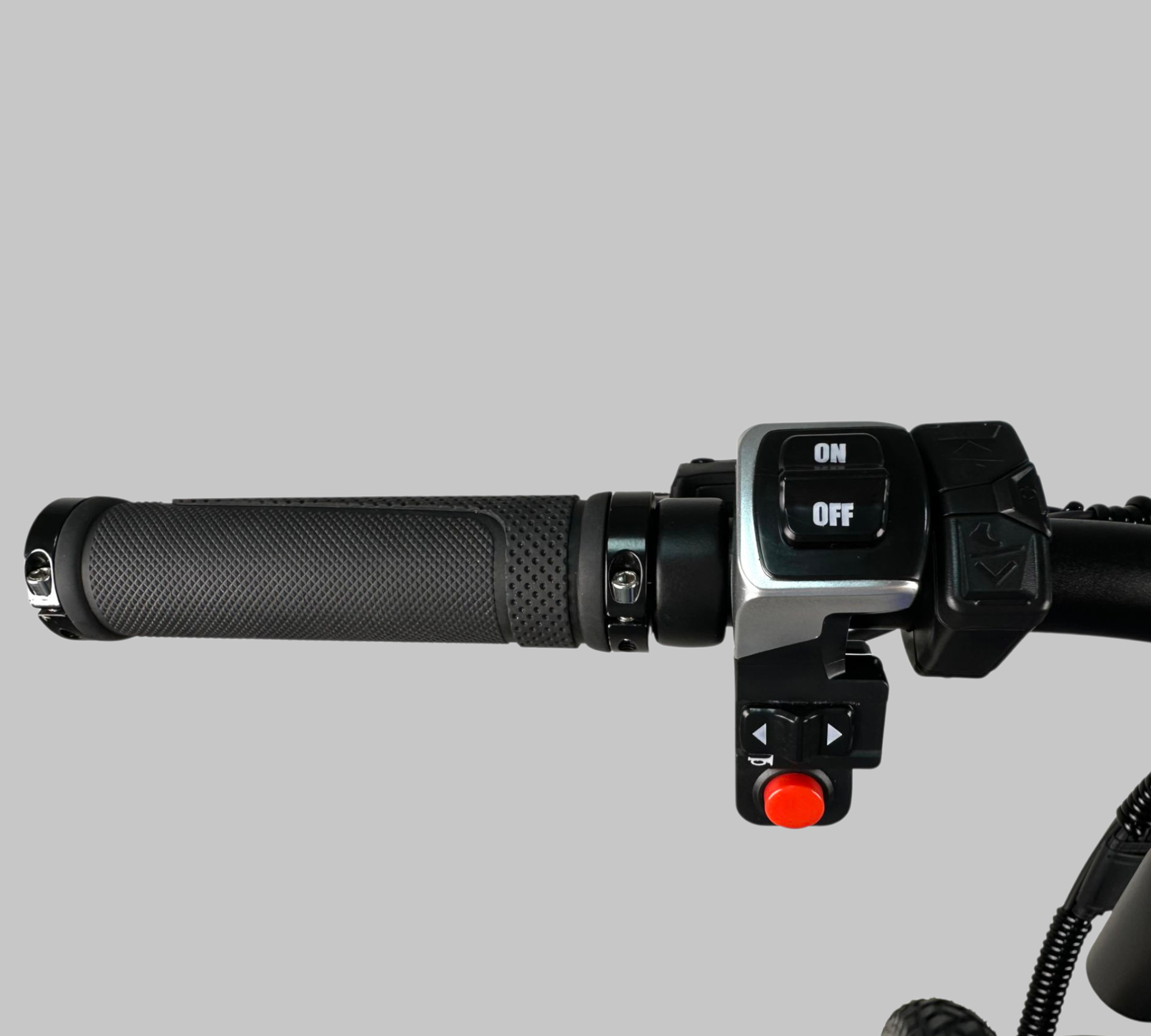

Front Large LED Headlight with built in Turn Signals & Horn

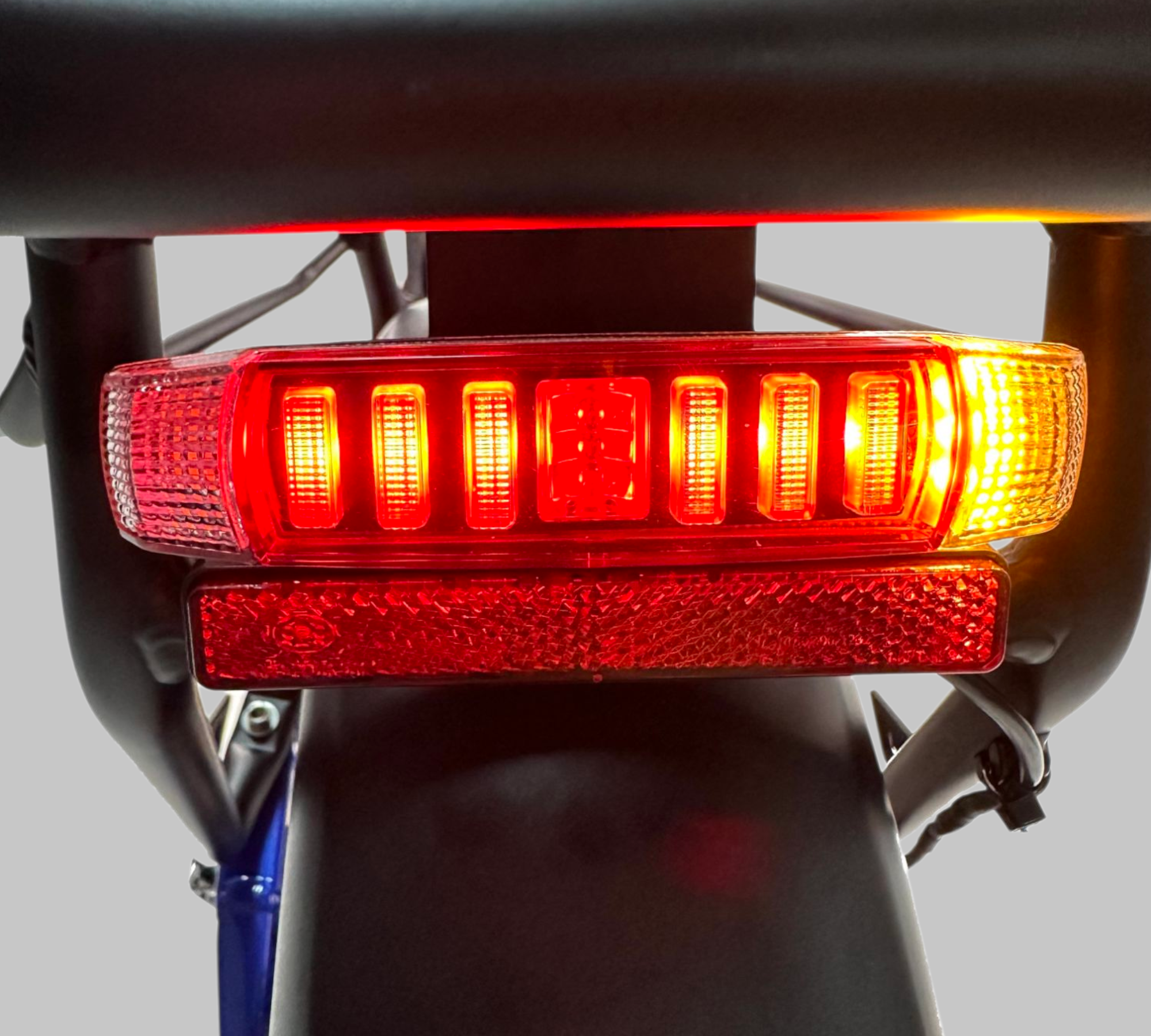

Brake Light with Turn Signals

Half Twist Throttle (Right Side)

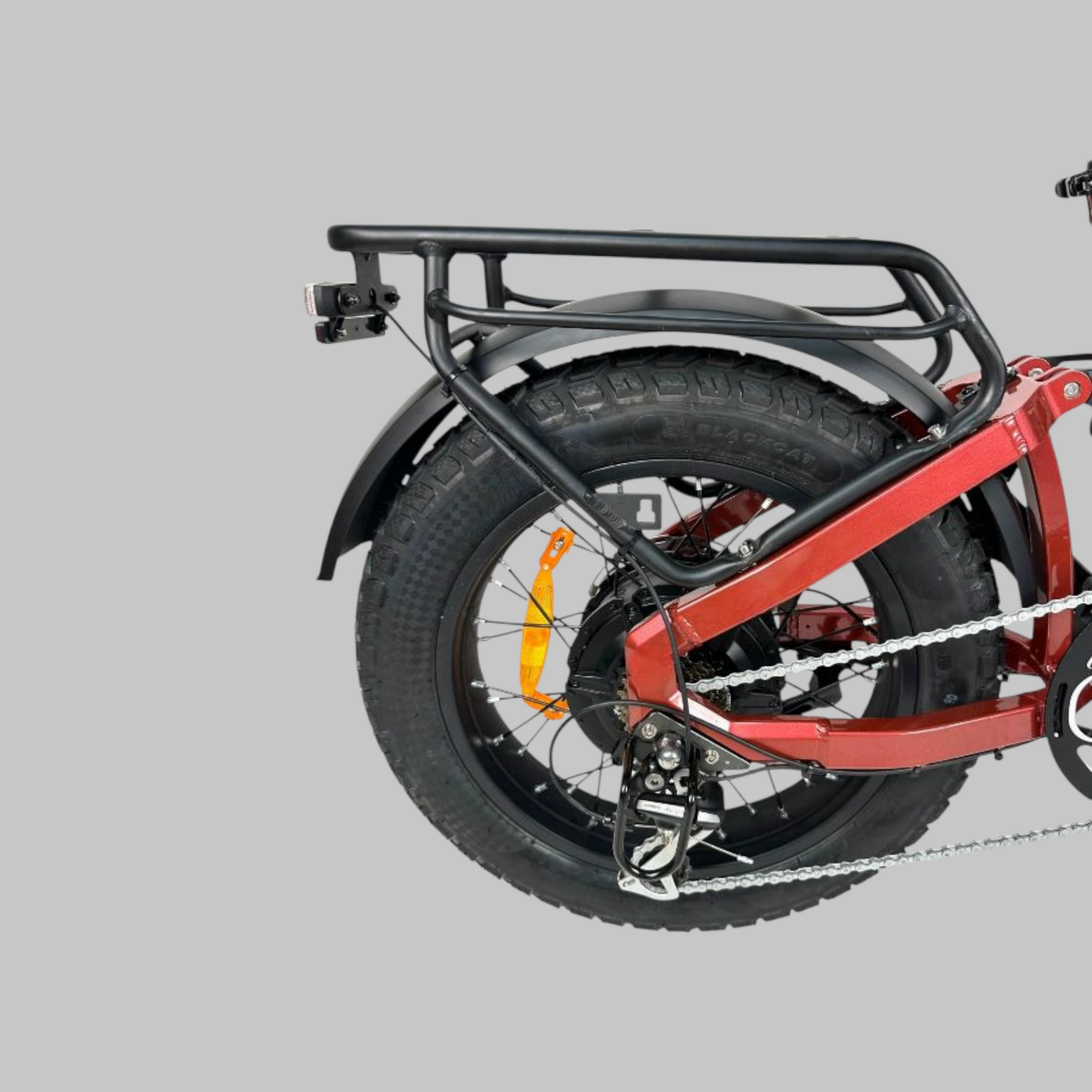

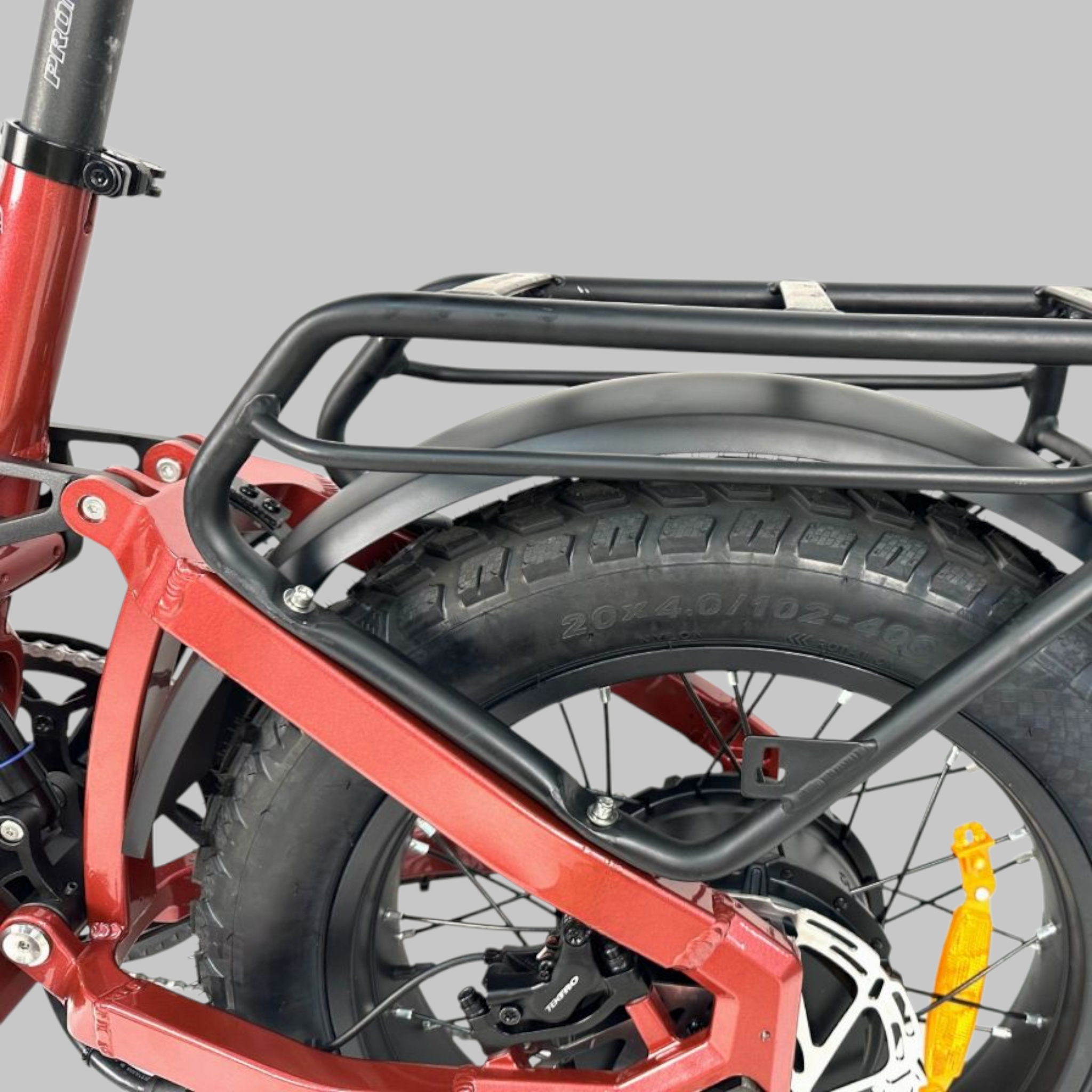

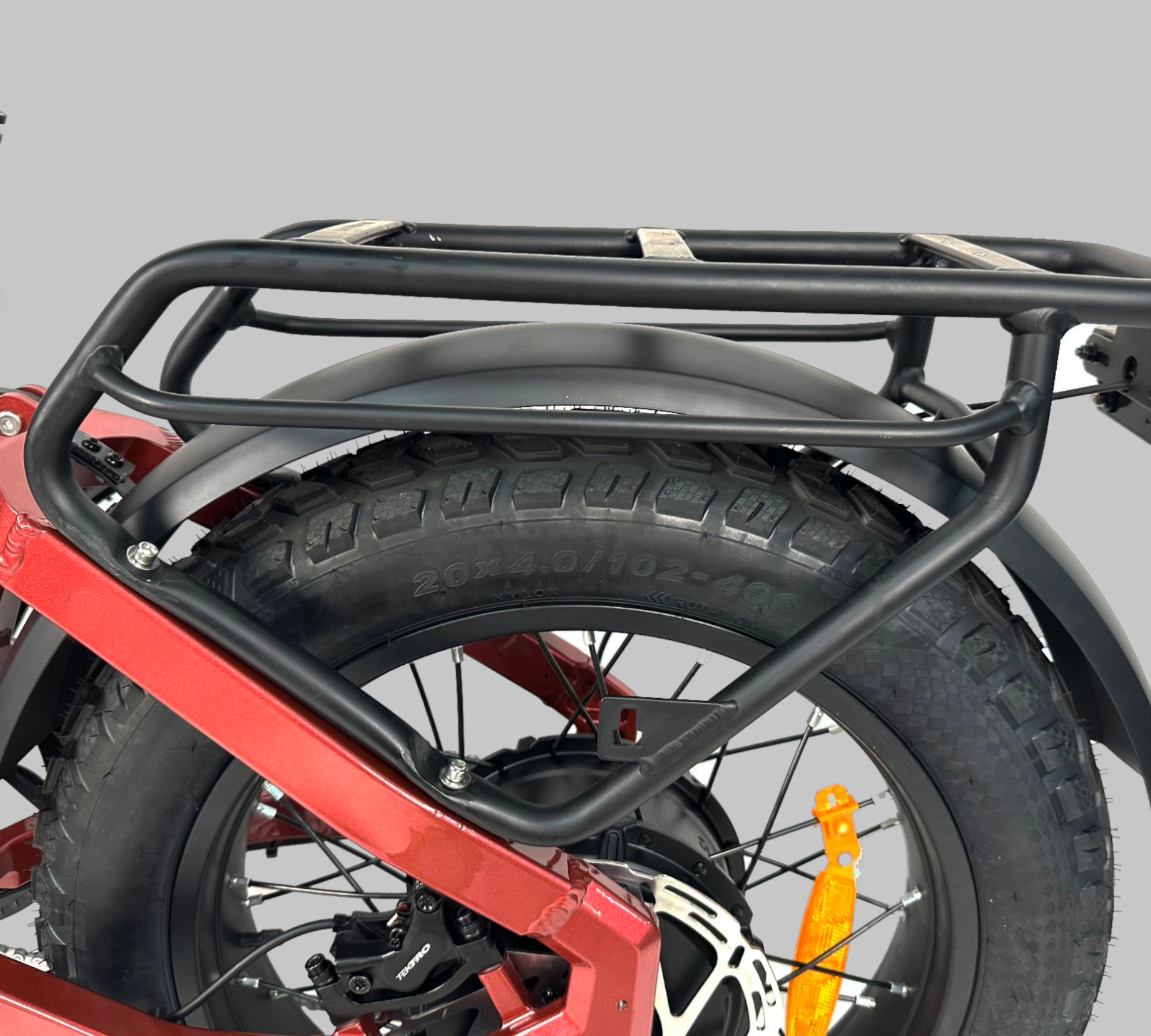

Aluminum Alloy Rear Rack

Front Aluminum Alloy Fender & Rear Aluminum Alloy Fender

Adjustable Kickstand

Speed: Bike ships as a Class 2 with a top speed of 20 mph but can be unlocked to a speed of 45+ mph

Range: 85 Miles on a full charge in low pedal assist

Max Load: 386lbs Bike: 330 lbs. & Rear Rack 56 lbs.

Regulations

Before operating a 1000-WATT plus electric bike, it is essential to check with local authorities to ensure compliance with laws and regulations in your area.

Key Considerations

Registration

You may be required to register your electric bike with the relevant authorities.

Insurance

Check if insurance is mandatory to operate your electric bike in your area.

Licensing

You may need a license to operate your electric bike.

Permitted Areas of Operation

Be aware that electric bikes may not be allowed on:

• Bike paths
• Trails
• Bike lanes

Failure to Comply

Non-compliance with local laws and regulations may result in fines, penalties, or other consequences.

Take Action

Verify the specific requirements for operating a 1000-WATT plus electric bike in your area before using the product.
