Outlaw

KEY FEATURES

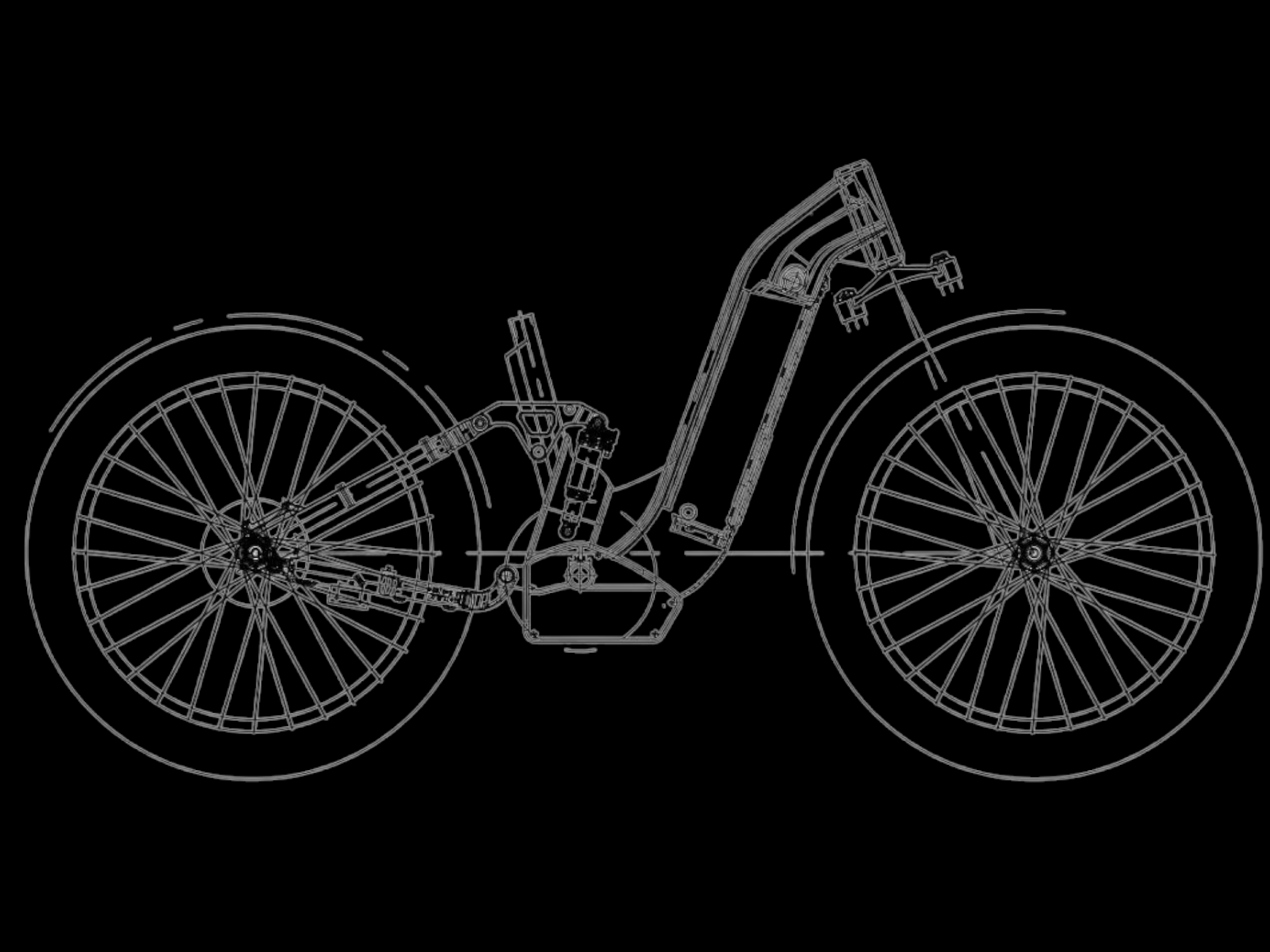

STEP OVER FRAME DRAWING

STEP THRU FRAME DRAWING

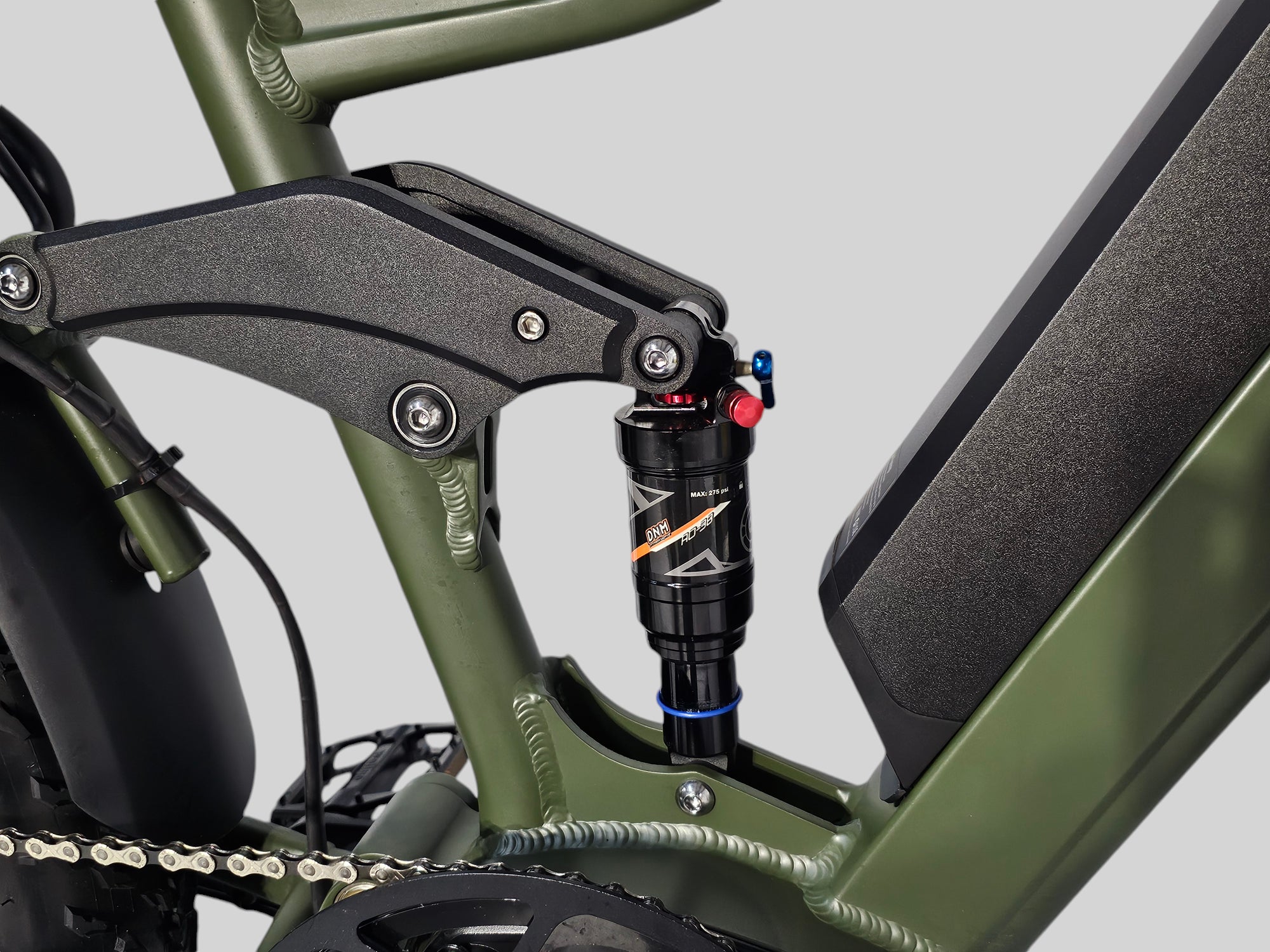

FRAME SUSPENSION

Rear frame air shock suspension incorporates air pressure adjustment for improved ride quality.

PROGRAMMABLE DISPLAY

The Bigstone C900 features a fully programmable display, allowing you to customize power settings for an enhanced riding experience.

1500-WATT MOTOR

60-Volt 1500-Watt Hengtai motor with a maximum peak power of 2600-watts, enabling riders to exert total control and conquer diverse terrain with ease.

BLACKCAT PUNCTURE RESISTANT TIRES

Discover superior performance and reliability with advanced hybrid Blackcat tires, built to handle challenging terrain with a robust puncture-resistant structure and high-speed rated design. These high-quality tires are wrapped around our extra strength double-wall aluminum alloy wheel and integrated 12-gauge spokes in the front and 10-gauge spokes in the rear for added strength to enable confident riding.

Specifications

• 6061 Aluminum Alloy Frame with DNM Frame Shock Suspension with air shock and 165 x 35 mm Travel
• 17.5″ Frame
• Step Thru Version Available in 26″ Tires Only
• 60 Volt System
• 1500-watt Hengtai rear hub Motor/ Peak Power of 2600-watts Max Output on a full charge
• 147nm of Torque

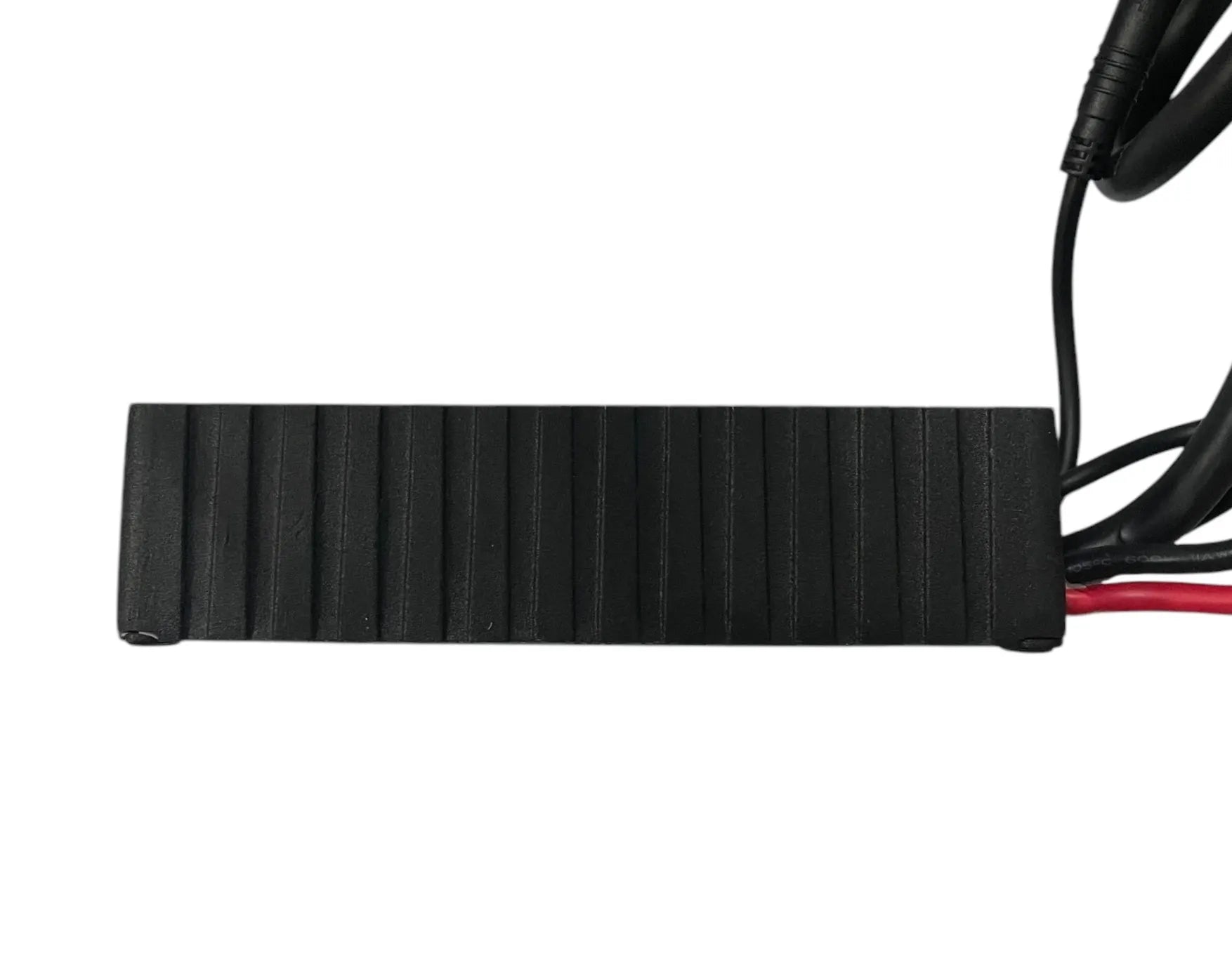

• 45-amp Waterproof Controller with Thermal Gel
• 3A Charger
• 25-ah & 15-ah Samsung 21700 Lithium-ion Battery/1200 WH and 900 WH for a combine of 2100 WH New Upgraded Slimmer style rear rack battery
• 26″ x 4″ Blackcat Puncture-Resistant Tires or 24″ x 4″ Blackcat Puncture-Resistant Tires
• Double Wall Aluminum Alloy Rims Black
• 12 Gauge Spokes
• Trama Front Fork Suspension with Bolt on Axle and lockout adjustment 100 mm of travel for 24-inch wheels & RST Guide Front Fork Suspension with heavy duty
• Quick Release Thru Axle for 26-inch wheels with 95 mm of travel
• BMX Aluminum Alloy Handlebars
• Promax Seat Post
• Velo Comfort Saddle
• Bigstone C900 LCD Programmable Color Display
• Tektro E3940 Quad Piston Hydraulic Disc Brakes
• Front and Rear 203mm Rotors
• Torque-Cadence Combo

• 58T Prowheel Aluminum Alloy Crank
• Rear Cassette 11-13-15-17-19-21-24-28-32-36T

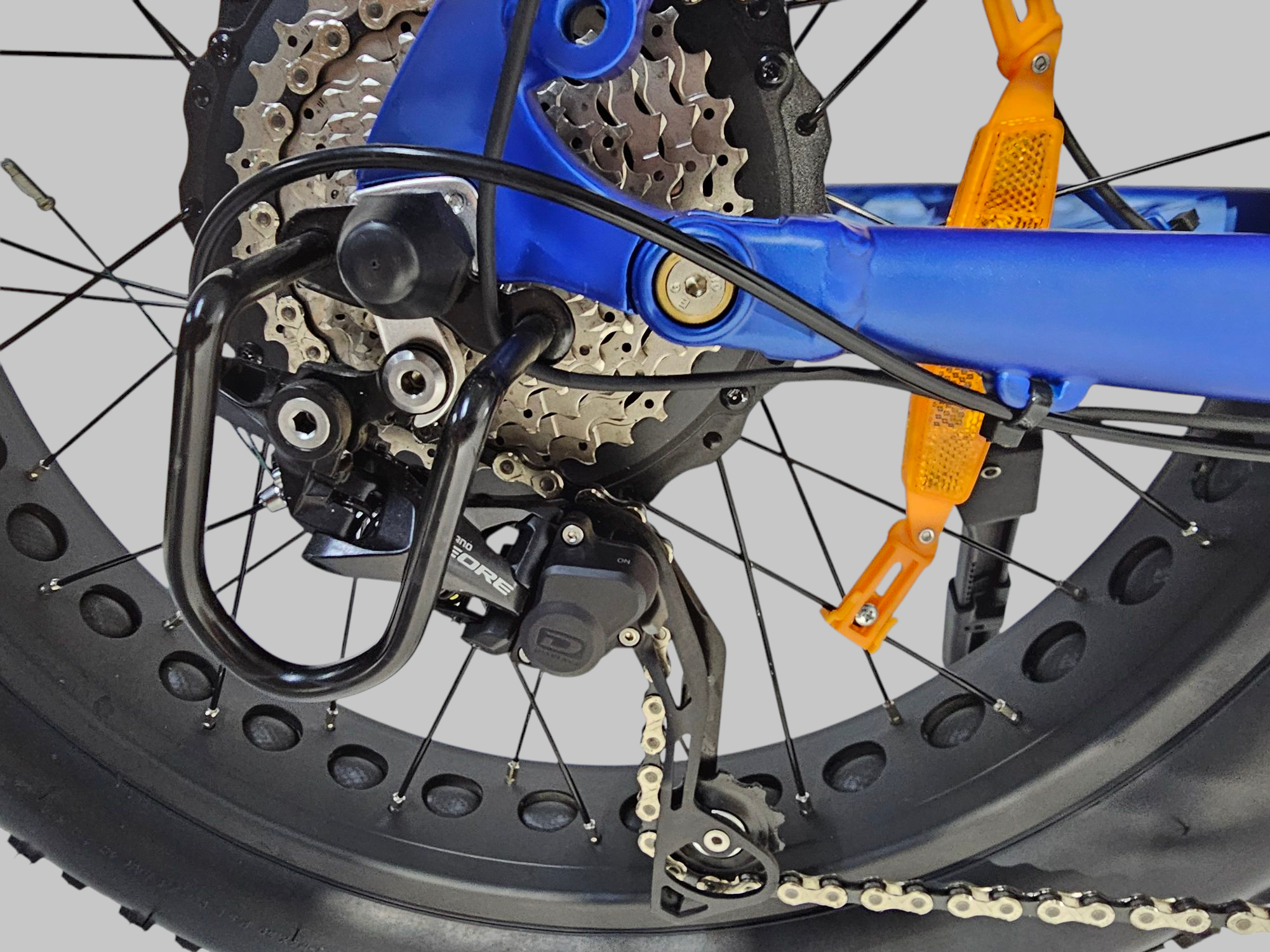

• Shimano Deore 10 Speed
• Front Large & Bright LED Headlight with Brake Light & Rear Turn Signals
• 9 Levels of PAS
• Half Twist Throttle (Right Side) with Leather Grips
• Aluminum Alloy Rear Rack
• Front Aluminum Alloy Long Fender and Rear Aluminum Alloy Fender
• Adjustable Kickstand
• Bike ships as a Class 2 with a top speed of 20 mph but can be unlocked to a speed of 35+ mph
• Range: 100 plus Miles on a Full Charge in low pedal assist
• Max Load: 400 lbs.


Regulations

Before operating a 1000-WATT plus electric bike, it is essential to check with local authorities to ensure compliance with laws and regulations in your area.

Key Considerations

Registration

You may be required to register your electric bike with the relevant authorities.

Insurance

Check if insurance is mandatory to operate your electric bike in your area.

Licensing

You may need a license to operate your electric bike.

Permitted Areas of Operation

Be aware that electric bikes may not be allowed on:

• Bike paths
• Trails
• Bike lanes

Failure to Comply

Non-compliance with local laws and regulations may result in fines, penalties, or other consequences.

Take Action

Verify the specific requirements for operating a 1000-WATT plus electric bike in your area before using the product.
